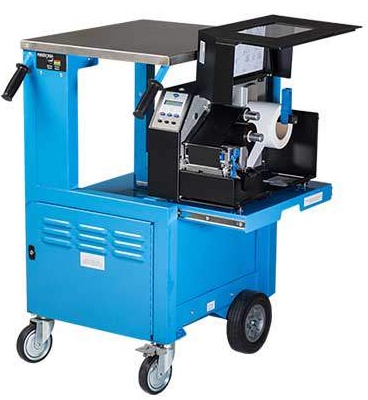

Printronix PrintCart Industrial Printer Mobile Workstation
Mobile Printer Power Solutions - The PrintCart is the industry’s best mobile workstation for demanding wireless printing and business applications.The PrintCart provides a wireless, point-of-use thermal printing and wireless terminal platform for use in demanding logistics and distribution warehouse environments. Printing at the point of application improves worker efficiency and accuracy. POWER TO SPAREPrintCart is the only mobile printer-power solution
Mobile Printer Power Solutions - The PrintCart is the industry’s best mobile workstation for demanding wireless printing and business applications.
The PrintCart provides a wireless, point-of-use thermal printing and wireless terminal platform for use in demanding logistics and distribution warehouse environments. Printing at the point of application improves worker efficiency and accuracy.
POWER TO SPARE PrintCart is the only mobile printer-power solution proven to last through demanding work shifts. It can be deployed anywhere within the physical limits of a business at any time to provide terminal and labeling capability over multiple shifts.
The rugged PrintCart can power a printer and terminal for up to 20 hours (12 hours under heavy use) and fully recharge in about 4 hours. Need even more power? Continuous 24 hour operation is possible by using the optional battery sub-pallets and/or an external charger.
An innovative self-defending controller automatically balances business needs with optimal power system performance. There are no controls to operate. When connected to line power, the cart automatically switches equipment to AC power while simultaneously charging the battery. The longevity of the battery is extended by protecting it from deep discharging and short charge cycles.
Move your printer to the point of application and improve worker efficiency and accuracy. The Printronix PrintCart is the only mobile printer-power solution proven to last through demanding work shifts. Its Advanced Power Management System is designed to lower your operating costs and increase productivity.
When you plug in the PrintCart to your thermal printer and wireless terminal, you’ll immediately enjoy: • The ability to power a printer and terminal for up to 20 hours (12 hours under heavy use) • Easy battery assembly that can be changed in less than 10 minutes for continuous operations • A simple, user-friendly display panel with a battery status “gas gauge,” audible recharge alarm and advance warning of battery exhaustion • Its rugged, powder coated, welded steel frame • Configuration capability for an external charger and/or an exchangeable battery pack for continuous operations
Specifications
PHYSICAL SPECIFICATIONS
Height (work surface / scanner storage): 40”/47” (101.6cm/119.4cm) Width (frame / wheels): 21”/22” (53.3cm/55.9cm) Length (work surface / including handles): 25”/36” (63.5cm/91.5cm) Weight (without printer or terminal): 280 lbs (127kg) Printer Shelf Load Capacity: 70 lbs (32kg) Work Surface: Stainless Steel – 21” (53.3cm) wide x 25” (63.5cm) long Printer Slide-out Shelf Painted Steel – 14” (35.6cm) wide x 20.25” (51.4cm) long w/ pre-drilled mounting for 4” or 6” Printronix thermal bar code printer; includes shock mounting hardware Printer Shelf Extension: 10” (25.4cm) Wheels: 2 – 5” (12.7cm) caster, one locking (front); 2 – 8” (20.3cm) fixed wheel (rear)
ELECTRICAL SPECIFICATIONS (NORTH AMERICAN (120VAC/60 HZ)
Battery Capacity: Typical Recharge Time – battery cannot discharge below 30% 2 x 100 Amp-hour: 3.2 hours Battery Type: Sealed Lead Acid, Absorbed Glass Mat (AGM) AC Inverter Output: 120V/60Hz/1Ø @ 750w 12VDC Charger Capacity: 45A Input Current (maximum): 15A @ 120VAC Input Plug: NEMA 5-15 male 3 prong plug Output Receptacle: 2 each NEMA 5-15 GFCI
ELECTRICAL SPECIFICATIONS (EUROPEAN (230VAC/50HZ)
Battery Capacity: Typical Recharge Time – battery cannot discharge below 30% 2 x 100 Amp-hour: 3.2 hours Battery Type: Sealed Lead Acid, Absorbed Glass Mat (AGM) AC Inverter Output: 230V/50Hz/1Ø @ 600w 12VDC Charger Capacity: 45A Input Current (maximum): 8A @ 230VAC Input Plug: User selectable (IEC 320 male socket connector) Output Receptacle: 4 each IEC 320
Supplies & Accessories:
Stand-alone Charger: For facilities that require continuous use – 25 A charger 120V/60Hz or 230V/50Hz
Fast-Charge Battery Sub-pallet: To facilitate continuous use operations, a sub-pallet with batteries designed to be changed out in less than 10 minutes
Batteries: Power a thermal printer and terminal for up to 20 hours (12 hours under heavy use)
Accessories: Scanner & Media Storage, Utility Drawer & Refuse Bin, and Notebook Holder
