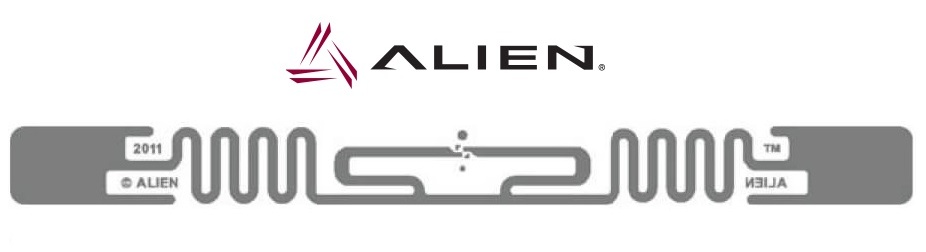

Alien ALN-9740 UHF Gen2 Squiggle Higgs4 inlay Tag
The Alien Technology ALN-9740 Squiggle is a high-performance, general purpose UHF Gen2 RFID inlay tag for use in a wide variety of applications. Brings all the Higgs4 advantages to highly-regarded “Squiggle” Inlay.
Product Overview: Powered by Alien®’s volume focused Higgs™4 UHF RFID IC and innovative Squiggle antenna design, the ALN-9740 delivers industry leading EPC Gen 2 performance and reliability at a competitive price. ALN-9740 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.
With its Higgs-4 core, the Squiggle delivers next generation performance and a rich feature set, yet is completely optimized for the highest volume enterprise, retail, and apparel applications. An optimized memory footprint includes a 32-bit TID, a 64-bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.
Typical applications for the Squiggle include, but are not limited to, corrugate cases, pallet placards, apparel hang tags, baggage tags, shipping labels, asset management, and file folder labels.
Features: Designed to meet EPCglobal Gen2 (V1.2.0) and ISO/IEC 18000-6C Worldwide operation in the RFID UHF bands (840-960 MHz) 448-Bits of NVRAM Memory • 128-EPC Bits • 128 User Bits • 64 Bit Unique TID • 32 Bit Access and 32 bit Kill Passwords
Pre-Programmed with a unique, unalterable 64-bit serial number User Memory can be Block Perma-Locked as well as read password protected in 32-Bit Blocks Low power operation for both read and program Dynamic Authentication™ - anti-cloning/anticounterfeit technology Exceptional operating range, up to 11m with appropriate antenna. Available in high-yield, high capacity dry/wet inlay rolls
