Dataman 8072 2D datamatrix handheld barcode verifier offers robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and direct part mark (DPM) codes with high-performance code quality verification. Easy to use - Plug&Play verifier for faster 2D barcode verification results using the DataMan 8070 Setup Tool Software providing Fast, accurate algorithms provide reliable and repeatable results.

DataMan 8070V Series Features
Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.

The DataMan 8070 series barcode verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult direct part mark (DPM) codes. Combined with simple DataMan Setup Tool software, DataMan 8070 series verifiers deliver detailed, repeatable results.

Multiple options for verifying codes on every surface
DataMan 8070 verifier is the only verifier with all three, 30/45/90-degree, lighting angle options specified in the International Organization for Standardization (ISO) AIM DPM Quality Guideline (ISO/IEC TR 29158). It easily illuminates codes on textured, curved, and even highly reflective surfaces, reliably capturing and grading code images to demonstrate code quality compliance.

Fast, accurate algorithms provide reliable and repeatable results
High-speed location and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results. Detailed reports show whether codes meet industry standards and can be used to demonstrate compliance, as well as pinpoint printing and process control issues.

Easy-to-maneuver compact design and rugged housing for greater mobility

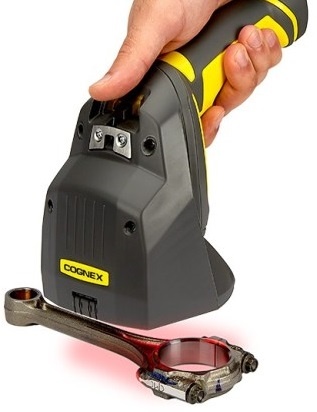

The DataMan 8070 series verifier has an ergonomic, handheld scanner-like design that is easy to maneuver. A small imaging head gives users better access to codes in recessed or hard-to-reach locations. The DataMan 8070 verifier is the only verifier on the market with an IP65 rating and rugged housing to withstand even the harshest factory floor environments.

DataMan 8070 Series Specifications
Compared to other industry verifiers, the DataMan 8070 series verifier offers greater versatility and speed to verify codes on every surface.
•    30-, 45-, and 90-degree lighting options
•    27 x 20 mm field-of-view (FOV)
•    6.0 mil minimum x-dimension
•    High-speed processing engine
•    1.2-megapixel sensor

Symbologies     2D DataMatrix barcodes
Field-of-View     27mm x 20mm
Minimum X-Dimension     6.0mil
Image Sensor     1.2 MP
Lighting     30-, 45-, and 90-degree options
Lighting Type     660 nm red LED
Communications     USB and Ethernet
Weight     572 g without cable
Dimensions     106 mm x 189 mm x 189 mm
Protection     IP65
Approvals (CE, UL, FCC)     CE Certified
Industry Standards Compliance     ISO/IEC 15415, 15426-2, TR-29158 (AIM DPM)  Calibration card included.*
Application Standards     GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434
Operating System     Windows
Software Interface     DataMan Setup Tool
