REA VeriCube Quality Control Device for 2D DataMatrix Barcodes verification device which can be used across all industry sectors. Whether lying, standing from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position. The measurement of optical barcodes in compliance with defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.REA VeriCube is a state-of-the-art
REA VeriCube Quality Control Device for 2D DataMatrix Barcodes verification device which can be used across all industry sectors. Whether lying, standing from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position. The measurement of optical barcodes in compliance with defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.

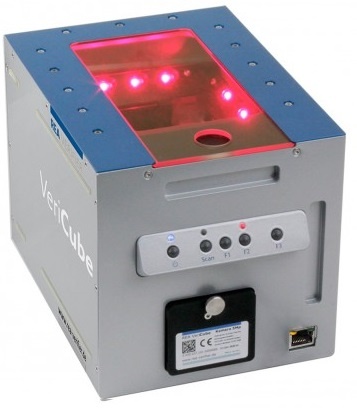

REA VeriCube is a state-of-the-art matrix and barcode verification device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured in the optimum measuring position.
The measurement of optical codes in compliance with ISO standards at defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.
The measuring system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid ambient light influences during the measurement process.
The measured values are transmitted via a standard network interface to a PC with REA TransWin32 evaluation software installed.
The verification system consists of the measuring head, an optical module (wide selections of Field of view see technical data) and the Windows based PC evaluation software REA TransWin32.
With the REA Verifier VeriCube you can quickly find out how to improve the read rate of the tested codes.
Optimize the print quality of your codes by utilizing detailed measurement results.
Features
• Contact-free measurements by a CMOS camera
• Easy exchangeable camera modules to adapt to different barcode sizes
• Selectable illumination (red or white light)
• Capable of measuring DPM codes (direct part marking)
• Designed to operate in 3 positions to meet different measuring requirements: sidewise, in upright position and upside down
• Darkened measuring chamber to avoid ambient light influences
• Verification according to ISO/IEC 15415 for printed datamatrix barcodes
• Verification according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking datamatrix barcodes
• Verification according to ISO/IEC 15416 or ANSI X3.182 for barcodes
• Verification in compliance with GS1 specifications
• Verification of GS1-128 data structures
• Verification of optional parameters for optimizing the print process
• Multilingual user interface and reports
• For ease of use, settings can be stored in customized profiles for fast selection
• ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
• Specific code selection to meet the pharmaceutical industry demands
• Power supply via network cable (Power over Ethernet)
• Easy removable and exchangeable transparent cover plate
• Network-compatible PC evaluation software TransWin32 for Windows (multi-user capable)
Quality Control Device for 2D DataMatrix Barcodes
REA VeriCube Quality Control DeviceFor 2D DataMatrix Barcode Verification device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position. The measurement of optical codes in compliance with defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.
The measuring system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid ambient light influences during the measurement process.
The measured values are transmitted via a standard network interface to a PC with REA TransWin32 evaluation software installed.
The verification system consists of the measuring head, an optical module with a wide measuring range to choose from and the Windows based PC evaluation software REA TransWin32.
With the REA Verifier VeriCube you can quickly find out how to improve the read rate of the tested codes. Optimize the print quality of your 2D Datamatrix barcodes by utilizing detailed measurement results.
Data structures and barcode properties:
GS1 data structures (GS1 DataMatrix, GS1-QR-Code, GS1-128, GS1 Databar, Composite)
ISO/IEC 15418 / ANS MH10.8.2 data structures (AIAG, Odette, VDA, EDIFICE, HIBC, DOD, UPU …)
EFPIA and PPN support for pharmaceutical industry
Check digit control settings
Size control settings
Customizable date verification
Technical Data
Measuring accuracy compliant to ISO/IEC 15426-2 and ISO/IEC 15426-1
Windows Software TransWin32 included
Red LED light 660 nm or white LED light 4.000 °K, optianally IR 840 mm, 950 mm, UV 365 mm
Illumination angle 45°, red or white light
Status LEDs for scan and light source selection
Power supply via PoE (Power over Ethernet)
Key panel with on/off, Scan and 1 customizable-function key
Flip key panel to accomodate to preferred measuring position
RJ45 Ethernet port for TCP/IP communication
Exchangeable camera module, resolution 2592 x 1944 pixel
Camera focus and aperture pre-adjusted by factory
Size: 200 x 150 x 150 mm (w/l/h), with key panel 210 mm width
Weight: 2.600 g
Windows 7, Windows 8 and Windows 10. 64-bit support. For option Audit Trail 64-bit Windows is mandatory.
Types of Barcode Symbologies covered:
Matrix Codes 2D Barcodes (2D): DataMatrix, DPM-Matrix Codes, QR-Code, Dotcode, MicroQR-Code, Aztec Code, PDF 417, MicroPDF, HanXin Code, Composite Codes, more under development
1D Barcodes (1D): EAN-13, UPC-A, UPC-E with/ without ADD-ON, EAN-8, 2/5 Interleaved, ITF-14, Frachtpost, Code 39, PZNCode, Code 32, Code 128, GS1-Databar, GS1-Data-bar
Composite Optional 1D Barcodes Codes: 2/5 3 Bars, 2/5 5 Bars, 2/5 IATA, 2/5 Baggage, 2/5 DHL Express (Frachtpost-Code), Code39 Full ASCII, Code93, MSI, Plessey, Codabar Monarch (18), LAETUS Pharmacode, LAETUS Mini Pharma Codes.
