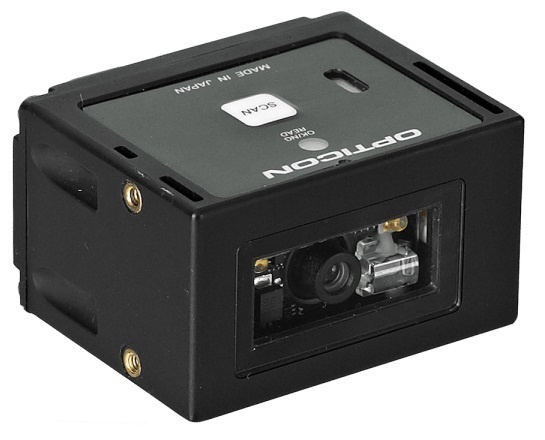

Opticon NLV-3101 1D/2D Fixed Mount Scanner
NLV-3101 2D CMOS Fixed Mount ImagerThe NLV-3101, a 2D CMOS fixed mount imager, quickly and efficiently scans 1D and 2D barcodes. This scanner is ideal for retail or industrial barcode scanning applications. The NLV-3101 features red LEDs to illuminate the viewable area and green LEDS to precisely target the barcode to be scanned. Additionally, this fixed mount scanner has picture-capture capability: scanned images can be viewed to assist with troubleshooting
NLV-3101 2D CMOS Fixed Mount Imager
The NLV-3101, a 2D CMOS fixed mount imager, quickly and efficiently scans 1D and 2D barcodes. This scanner is ideal for retail or industrial barcode scanning applications. The NLV-3101 features red LEDs to illuminate the viewable area and green LEDS to precisely target the barcode to be scanned.
Additionally, this fixed mount scanner has picture-capture capability: scanned images can be viewed to assist with troubleshooting in industrial applications.
The NLV-3101 product highlights include:
• World’s most compact 2D imager in its class
• Rapidly scans/decodes a wide variety of 1D or 2D barcodes
• Fast global shutter technology with adjustable illumination – easily scan any surface
• Exceptional motion tolerance for moving applications
• Improved scanning of curved, wide and poorly printed barcodes
• Green LED targeting function providing laserfree aiming with no laser class required
• Programmable with image capture software available
• Complete unit with integrated decoder
• USB (HID and VCP/COM), RS232 or keyboard wedge interface selectable
• Low power consumption provides design flexibility
• Rugged – IP65 rating for water and dust protection and shock resistant
• Backed by a two year warranty
The NLV-3101 is the smallest 2D stationary scanner ever made by Opticon. It is also the most powerful 2D stationary scanner made by Opticon. It is developed for the most demanding applications that require the capability to scan both 1D and 2D. In conclusion, if you are looking for a 2D fixed mount scanner this device is for you!
This fixed mount scanner is ideal in situations that require both 1D and 2D scanning at a high speed. From previous customers we see that the NLV-3101 is used in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and it is frequently used in medical or pharmaceutical analysis machines. It is clear that this scanner is applicable in a wide range of markets. For this reason this is such a popular product.
How we describe the NLV-3101
The NLV-3101 is the best 2D fixed scanner Opticon ever made because it is fast, durable and reliable. This stationary scanner comes with an USB HID/VCP or a Serial interface. Its dimensions are small measuring just 41.1 x 33 x 24 mm, therefor it is a perfect fit for most appliances. Furthermore, this scanner is flexible so it suits most OEM or ODM applications that require a high specification 2D CMOS camera for all their scanning purposes. In conclusion the NLV-3101 is a very suitable fixed position scanner for demanding OEM and ODM projects.
There is more to the NLV-3101, all the specifications and details can be found in the leaflet below.
The highlights why NLV-3101 is the perfect scanner to integrate:
• High end 1D and 2D scanning
• Compact design
• Flexible mounting
• Scanning speed of 60 scans per second
