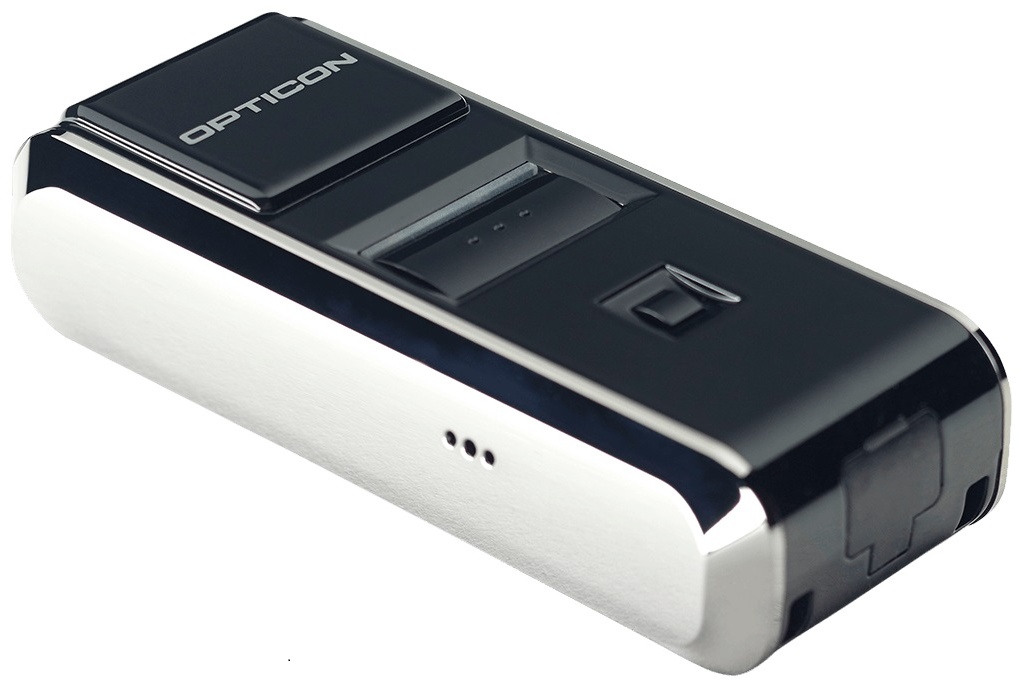

Opticon OPN-3102i is a 2D companion barcode scanner in a compact design. It is lightweight and fits easily in your pocket, making it the ideal companion scanner to bring along. It has real-time data transfer through Bluetooth and, when no connection is available, can store data locally as well. The OPN-3102i supports Apple MFi as well. The integrated NFC tag enables easy Bluetooth pairing and the device can also be charged wirelessly.

Opticon OPN-3102i 1D & 2D Pocket Barcode Scanner enables organizations to easily integrate barcode scanning in their business process or service to optimize efficiency. The simplicity of this scanner enables people to use it with only a short introduction, an easy way to start optimizing with. Some of the uses include field sales and service, retail point-of-sale, inventory management, asset tracking and visitor registration.

Opticon OPN-3102i 1D & 2D Pocket Barcode Scanner is a powerful 2D scanner equipped with a high capacity battery so the scanner can go for hours without charging. The Bluetooth connection facilitates real-time data transfer to your system and is able to connect with any device including Apple. This means that any data shared with an Apple product is transferred more quickly. This companion scanner is also resistant to drops up to 1.5 meters without the need for special protection. The OPN-3102i comes in black and white, and the dedicated CRD-3000 cradle charges your device wirelessly. The OPN-3102i looks sleek, modern, and scans up to 100 fps.

Using the Opticon OPN-3102i 1D & 2D Pocket Barcode Scanner is simple and straightforward. One button to scan the barcode and one button to correct any mistakes made, both actions providing visual feedback for smooth interaction.

Opticon OPN-3102i 1D & 2D Pocket Barcode Scanner adds real-time barcode scanning to any Bluetooth device. It is extremely small, making it an ideal solution for field sales, POS, inventory management, and many more. The integrated NFC tag enables easy Bluetooth pairing. It contains wireless charging technology and can as well as be
charged over a standard USB cable

A few highlights why the OPN-3102i is the perfect companion to scan with:
    1D & 2D barcode scanning
    Apple MFi certified
    Bluetooth connection
    Lightweight
    NFC tag for easy Bluetooth pairing
    Wireless charging
    Up to 100 fps

• An ultra-fast 100 frames per second (fps) CMOS imager rapidly scans and decodes 1D and 2D barcodes
• Price point makes real-time barcode scanning with an Android, Apple or Windows devices affordable
• Thanks to the built-in NFC tag, Bluetooth pairing is very easy • Supports Apple MFi
• SPP and HID Bluetooth profiles for added flexibility
• Dedicated cradle available • Small form factor: weighs only 60 grams, 36 x 83 x 21.5 mm
• Audible and visible feedback after a successful scan
• USB rechargeable or Wireless charging, high capacity Lithium-Ion battery
• Extremely durable: IP54 rating against dust and moisture and survives 1.5 m drop test
• Two year warranty protects your investment
Operation: CPU: 32-bit
O/S: Proprietary : RTC: Supports year, month, day, hour, minute, second (leap year supported)
Memory: Flashrom: 1 MB , Ram: 96 kB
Operating indicators: Visual: 1 LED (red/green/blue)
Non-visual: buzzer, vibrate
Operating keys: Entry options: 2 keys total, 1 function key, 1 scan key
Communication: USB: Micro USB Bluetooth: Ver. 2.1, SPP, HID, 1 to 1 connection, master / slave mode, authentication and encryption.
Rechargeable battery: Lithium-Ion 600 mAh
Operating time: 10 hours (2 scans / 10 sec. incl
Bluetooth communication)
2D Imager Optics
Light source: Green aiming LED, warm white LED
Scan method: CMOS area sensor, 640 x 480 pixels
Scan rate: Up to 100 fps
Focal distance: 109.2 mm / 4.3 in from the front
Curvature: R≥20 mm (12 digits), R≥16 mm (10 digits)
Reading pitch angle: ± 700
Reading skew angle: ± 700
Reading tilt angle: 3600
Field of view: Horizontal 380, Vertical 28.90,
Diagonal 46.40
Min. resolution at PCS 0.9: 0.127 mm / 5 mil min.
Min. PCS value: 0.2
Depth of field at code 39:
60 - 150 mm (0.127 mm) / 2.36 - 5.90 in (5 mil)
70 - 205 mm (0.254 mm) / 2.76 - 8.07 in (10 mil)
80 - 390 mm (0.508 mm) / 3.15 - 15.35 in (20 mil)
Depth of field at Code 128: 80 - 165 mm (0.2 mm) / 3.15 - 6.50 in (7.87 mil)
Depth of field at UPC: 65 - 260 mm (1.33 mm) / 2.56 - 10.24 in (52.36 mil)

Depth of field at PDF417:
65 - 125 mm (0.169 mm) / 2.56 - 4.92 in (6.65 mil)
50 - 180 mm (0.254 mm) / 1.97 - 7.09 in (10 mil)
Depth of field at QR Code:
70 - 95 mm (0.169 mm) / 2.76 - 3.74 in (6.65 mil)
35 - 225 mm (0.381 mm) / 1.38 - 8.86 in (15 mil)
Depth of field at Data Matrix:
60 - 130 mm (0.212 mm) / 2.36 - 5.12 in (8.35 mil)
50 - 150 mm (0.254 mm) / 1.97 - 5.91 in (10 mil)
* The depth of field depends on the view angle and
symbol length
Supported symbologies
Barcode (1D): UPC-A, UPC-A Add-on, UPC-E, UPC-E
Add-on, EAN-13, EAN-13 add-on, EAN-8, EAN-8 Add-
on, JAN-8, JAN-13, Codabar / NW-7, Code 11, Code 39,
Code 93, Code 128, GS1 DataBar, GS1 DataBar Limited,
GS1 DataBar Expanded, Composite GS1-DataBar,
Composite GS1-128, Composite EAN, Composite UPC,
IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5,
MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic
Postal code: Chinese Post, Korean Postal Authority code
2D code: Aztec Code, Codablock F, Data Matrix (ECC
200), Maxi Code (mode 2 to 5), MicroPDF417, Micro
QR Code, PDF417, QR Code, Chinese Sensible Code
Durability
Temperature in operation: -10 to 50 0C / 14 to 122 0F
Temperature in storage: -20 to 60 0C / -4 to 140 0F
Humidity in operation: 20% to 85% (non-condensing)
Humidity in storage: 20% to 85% (non-condensing)
Ambient light immunity: Fluorescent 10,000 lx max,
direct sun 100,000 lx max, Incandescent 10,000 lx max
Drop test: 1.5 m / 5 ft drop onto concrete surface
Protection rate: IP54
Physical
Dimensions (W x H x D): 36 x 83 x 21.5 mm /
1.42 x 3.27 x 0.85 in
Weight body: Ca. 60 g / 2.12 oz (incl. battery)
Case: Black or white version
Regulatory & safety
Product compliance: CE, FCC, VCCI, RoHS,
IEC62471:2006, EN60950-1, IEC60950-1, EN62479,
EN55032 Class B, EN55024
Items
Enclosed: MicroUSB cable, Neck strap
Sold separately: CRD-3000 cradle
