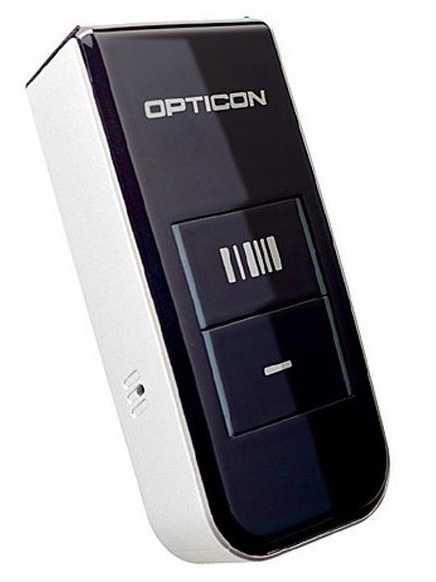

Mobile Pocket Companion Portable Bluetooth Cordless 1D & 2D Barcode Scanner. The Opticon PX-20 Bluetooth Companion Scanner (2D Imager) enables real-time barcode scanning into any Bluetooth ready device including Android, Apple iOS and Windows. The PX-20 scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many
Mobile Pocket Companion Portable Bluetooth Cordless 1D & 2D Barcode Scanner. The Opticon PX-20 Bluetooth Companion Scanner (2D Imager) enables real-time barcode scanning into any Bluetooth ready device including Android, Apple iOS and Windows. The PX-20 scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more.
Even though it features one of the industry’s most technically advanced 2D CMOS imager scan engines, the PX-20 comes at a very affordable price point that enables any business to integrate barcode scanning into mobile applications. When fully charged, the PX-20 provides an operating time of up to 35 hours, and on occasions where Bluetooth is not available, the USB port enables (cabled) data transfer to any USB device.
Product highlights include:
• 2D CMOS imager rapidly scans and decodes 1D and 2D barcodes
• Compatible with Android, Apple and Windows host devices
• Ready-to-go out of the box—just pair it with your Bluetooth device
• Supports Secure Simple Pairing (SSP), Serial Port Profile (SPP) and Human Interface Device (HID) Bluetooth profiles for added flexibility
• Free SDK allows customized scanning behavior
• Memory: FlashROM 512 kB, RAM 96 kB, External FlashROM 1024 kB
• Small form factor: weighs only 1.4 oz., 2.8 x 1.34 x 0.59 in (LxWxD)
• USB rechargeable, high capacity Lithium-Ion battery
• Audible and visible feedback after a successful scan
• Scanner comes with USB data/charging cable and neck lanyard
• IP54 rating against dust and moisture, survives multiple 6’ drops to concrete
• Two year warranty
It’s small, it’s durable & it’s reliable. This is the companion scanner that is suitable for indoor and outdoor use. Due to its small size, lightweight and long-lasting battery it is easy to take this scanner with you.
Applications:
This product is a companion scanner, which means it is often used from smaller stores to bigger companies for their inventory management, asset tracking, visitor registration, and more. The PX-20 is a convenient and durable scanner and because of that, a wide audience uses it.
The PX-20 is small, light, and also high performing. It is easy and quick to use and it can scan up to 60 scans per second due to its high-end 2D camera inside. With its Bluetooth 4.2 connection, Bluetooth Low Energy (BLE), it provides a real-time data transfer or, without connection, data can be transferred through the USB-cable that is included. The smart design and conscious material choices make the companion scanner drop resistance up to 1.8 meters, is water-resistant due to its IP 54, and has a strong battery lasting up to 35 hours. This makes the device the ideal pocket scanner outdoors or indoors.
Features:
• 2D CMOS imager rapidly scans and decodes 1D and 2D barcodes
• Price point makes real-time barcode scanning with an Android, Apple iOS or Windows host device affordable
• Ready-to-go out of the box—just pair it with your Bluetooth device
• Supports Secure Simple Pairing (SSP), Serial Port Profile (SPP) and Human Interface Device (HID) Bluetooth profiles for added flexibility
• Bluetooth Low Energy
• Free SDK allows customized scanning behavior
• Memory: FlashROM 512 kB, RAM 96kB, External FlashROM 1024 kB
• Small form factor: weighs only 40 grams, 36 x 74 x 16 mm (W x H x D)
• Audible and visible feedback after a successful scan
• USB rechargeable, high capacity Lithium-Ion battery
• Extremely reliable and durable (IP54, 1.8 m drop to concrete)
• Two year warranty protects your investment
Supported symbologies
Barcode (1D): UPC-A, UPC-A Add-on, UPC-E, UPC-E, Add-on, EAN-13, EAN-13 add-on, EAN-8, EAN-8 Add-on, JAN-8, JAN-13, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC, IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic Postal code: Chinese Post, Korean Postal Authority code 2D code: Aztec Code, Codablock F, Data Matrix (ECC 0 - 140 / ECC 200), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR Code, Chinese Sensible Code
