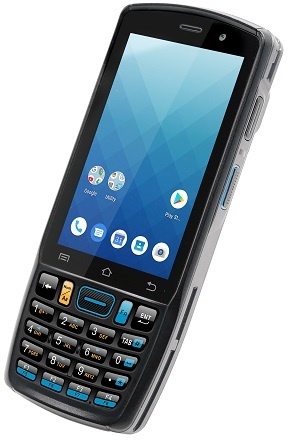

industrial PDA with a keypad and GMS certified powered by Android 9 OS with GMS certification, the EA320 industrial PDA has a 4" display and 400nits brightness for easy viewing. It is integrated with a 21-key keypad, 4500nAg battery as well as dual scanning buttons for instinctive data entry and 1D/2D barcode capturing that delivers a convenient experience for users. In addition, this device offers a Dual band fast roaming wifi, 4G LTE, HF/NFC RFID reader/writer and
industrial PDA with a keypad and GMS certified powered by Android 9 OS with GMS certification, the EA320 industrial PDA has a 4" display and 400nits brightness for easy viewing. It is integrated with a 21-key keypad, 4500nAg battery as well as dual scanning buttons for instinctive data entry and 1D/2D barcode capturing that delivers a convenient experience for users. In addition, this device offers a Dual band fast roaming wifi, 4G LTE, HF/NFC RFID reader/writer and 13 MP camera to complete your data collection requirements.
The Unitech EA320 is a great solution for variety of vertical applications such as warehousing, transportation, logistics, and manufacturing.
Specially designed for input-intensive applications, the unitech EA320 industrial PDA is combining with a 21-key keypad and delivers a host of new features that evolves the service level for a variety of vertical applications such as warehousing, transportation, logistics, and manufacturing.
Features
• Android 9 OS with GMS certification
• 4” HD display and 21-key keypad for input-intensive applications
• Industrial-grade performance: 1.8GHz octa-core processor
• All-in-one function: GPS, 2D Imager, HF/NFC and 13MP Camera.
• Support Bluetooth® 4.2 and dual-band IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, fast roaming
• IP65 rated and 1.5m drop specification.
• Long-lasting swappable 4500mAh battery
• Device supported versatile: AirWatch, SOTI, and MoboLink.
Specification
Operation System
OS Android 9
GMS certified GMS certified
CPU 1.8GHz, Qualcomm® Snapdragon™ 450,
64bits Octa-core Processor
Memory 2GB DDR RAM, 16GB ROM
4GB DDR RAM, 64GB ROM (optional)
Languages support Multi-languages
Display
Screen Size 4”, TFT-LCD WVGA (480 x 800) color screen (400nits)
Touch Panel Gorilla® 3 Glass with 5-point Capacitive Touch Panel,
compatible with gloves and supports wet resistance
Buttons / Keypad - Buttons / Keypad 21-key numeric
Camera - Camera 2MP front camera // 13MP rear camera with LED flash and auto-focus function
Indicator Type - Type LED, Speaker, Vibrator
Symbologies
1D Barcodes All major codes
2D Barcodes 1D codes :
All major codes
2D codes :
Composite Codes ,PDF417,MicroPDF417,Data
Matrix,Data Matrix Inverse,Maxicode,QR Code,Micro-
QR,QR Inverse,Aztec,Aztec Inverse,Han Xin,Han Xin
Inverse, Postal Codes,US Postnet,US Planet,UK
Postal,Japan Postal,Australian Postal,Netherlands KIX
Code
RFID
HF RFID Support HF/NFC
Frequency 13.56Mhz
Support ISO14443 (Type A/B) , ISO15693 , MIFARE, FeliCa
Communication
Bluetooth® Bluetooth® 4.2
WLAN IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, IPv6
WWAN 4G LTE TDD (B34/B38/B39/B40/B41) FDD (B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B17/ B19/B20/ B25/ B26/ B28/ B66)
WCDMA (B1/ B2/ B4/ B5/ B8)
GSM/EDGE/GPRS (850/ 900/ 1800/ 1900)
TD-SCDMA (B34/ B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
CDMA 1x
GSM/EDGE/GPRS (850/ 900/ 1800/ 1900)
GPS GPS, AGPS, Glonass, BeiDou, Galileo
Sensors Proximity sensor, light sensor and G-sensor
I/O Interfaces
USB USB Type-C
OTG Yes, over USB Type-C
POGO PIN Charging via cradle and USB client
SIM Slot Nano-SIM x 2
Expansion Slot MicroSD(TF)x1 , up to 128GB
Audio Dual-Microphone, speaker and 3.5mm audio jack
Enclosure - Dimensions ( W x H x D ) 164.5 mm x 68.6 mm x 17.5 mm //
Weight 280g
Durability - Drop Specification 1.5m Sealing IP65
Environmental - Operating temperature -20°C to +60°C // Relative Humidity 5% ~ 95% (non-condensing)
Power Source- Main battery Rechargeable and swappable // 3.8V 4500mAh Li-polymer battery
Software- MDM Software AirWatch, SOTI, and MoboLink
Regulatory Approvals - Regulatory Approvals CE, RED, CCC, NCC, RoHs compliance
Accessories
Accessories ■ Type-C Cable (PN#1550-900112G)
■ EA320 Single Slot Charging Cradle with a spare battery slot(PN#5000-900069G)
■ EA320 gun grip (PN#5500-900083G)
■ Power Supply for Cradle (PN#1010-900052G)
■ Li-polymer battery (PN#1400-900060G)
■ 3 Pins Power Cord(US) (PN#1010-601551G)
■ 3 Pins Power Cord(EU) (PN#1550-602333G)
■ 3 Pins Power Cord(UK) (PN# 1550-602689G)
