ID SPAD.U is a particularly flat UHF desktop reader integrated antenna, excellent reading performance and an innovative filtering of incorrect readings outside the device. Typical applications are laundry logistics, recording of loaned items during the issue and return in libraries, file and document tracking as well as the support of KANBAN systems and logistical processes.
Special Features:
UHF Desktop Reader with integrated antennas
A4 sized, defined reading area
Flat and modern design
Read rate of 99.5% within distances from 0 - 25 cm
Innovative filtering of unwanted stray reads
Configurable transmitting power
LED display elements

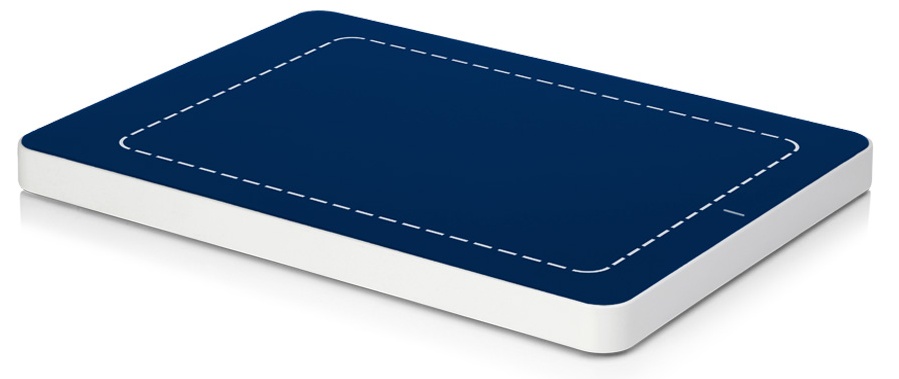

UHF Desktop Reader for several markets - ID SPAD.U is a particularly flat UHF desktop reader with integrated antenna for contactless data exchange with UHF transponders. The new device impresses with maximum reliability and modern design.
Thanks to the excellent reading performance and the innovative filtering of unwanted stray reads outside the device, the shielded UHF pad reader can be used in numerous markets.
Above all, this includes laundries, libraries and retail. Typical applications are laundry logistics, recording of loaned items during the issue and return in libraries, file and document tracking as well as the support of KANBAN systems and logistical processes.
Perfect Performance at every location
Thanks to integrated shielding and innovative filters, transponders are automatically suppressed outside of a small minimum distance from the device.
Various proposed configurations for customer-specific applications make it easier to optimize parameters and filters. Installation on metallic or conductive surfaces does not affect the reader in any way. This means that it can also be used on otherwise unsuitable substrates.
Up to a distance of 25 cm, optimal reading rates are achieved within the large reading window. In small steps adjustable transmission power and the filter parameters enable optimal adaptation to different applications and transponders.
Technical Specifications:
Dimensions (w x h x d) 376 mm x 276 mm x 26.8 mm
Housing
Upper part Plastic ABS
Cover plate Acrylic glass (PMMA XT)
Lower part Galvanized metal sheet
Weight approx. 2.0 kg
Protection class IP30
Color
Housing similar RAL 9003 (white)
Cover plate transparent, sapphire blue back printed
Power supply 12 bis 24 V DC ±15 %
Power consumption max. 7 VA
Operating frequency 865 MHz bis 868 MHz
Transmitting power 50 mW to 500 mW, configurable in up to 8 steps
Interface USB
Reader modes ISO Host Mode, Buffered Read Mode, Scan Mode
Supported transponders EPC Class1 Gen2, ISO 18000-6-C (optional)
Indicators LED green, red, orange (mixed color) Buzzer
Temperature range
Operation −25 °C up to +55 °C
Storage −25 °C up to +70 °C
Relative humidity 5 % up to 95 % (non condensing)
Radio approval
Europe EN 302 208
EMC EN 301 489
Safety
Low Voltage EN 62368-1
Human Exposure EN 50364
ID SPAD.U-USB-EU 5564.000.00 UHF Shielded Pad Reader
ID NET.12V-B 1688.002.00 Power supply 95 – 265 V AC, Output 12 V DC; 700 mA
ID CAB.USB-A 1686.000.00 USB cable 2.5 m
