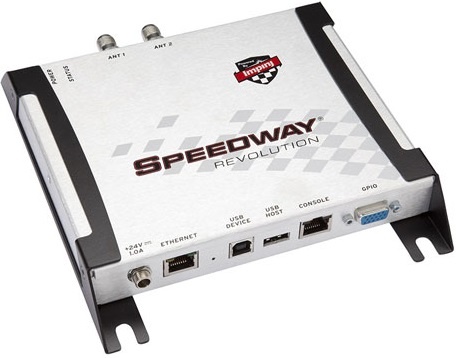

Impinj Speedway R220 is a 2-port UHF RFID fixed-mount reader supports up to 2 Antennas with the performance, quality, and reliability necessary for maximum endpoint visibility. Enables Custom Solutions to Everyday Problems With the largest installed base of fixed readers across a diverse range of applications, Speedway readers deliver market-leading performance, quality, flexibility and reliability for companies who use RAIN RFID to increase sales, reduce costs, and improve e ciency.
Benefits
Versatile and Customizable - Provides low-cost opportunity to create a large, contiguous read zone with many antennas connected to a single reader
Maximum Performance 24/7 - Maintain high read rates regardless of RF noise or interference leveraging patented AutoPilot capability that automatically optimizes performance
Powerful Application - Development ToolsSuite of hardware and software tools enable customsolution development
Operating Region:
-USA2M1- For use in the United States, Mexico, and Canada
-EU12M1- For use in the European Union, India, and the UAE
-GX12M1- For use in Brazil, Hong Kong, Indonesia, Malaysia, New Zealand, Singapore, Taiwan, Thailand, and Uruguay
Specifications:
ELECTRICAL:
Air Interface Protocol: GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: UHF (860- 960 MHz), region dependent
Transmit Power (POE): +10.0 to +31.5 dBm (EU1 limited to +30 dBm)
Transmit Power (External DC Power): +10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
Max Receive Sensitivity: -84 dBm
Max Read Distance: Not published
Max Read Rate: Up to 200 tag reads per second
Data Interface: RS-232, ethernet
GPIO: 4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source (POE): IEEE 802.3af
Power Source (Power Adapter): Listed/Certified power supply, AC-DC power supply rated for 24Vdc/2.1A
MECHANICAL:
Antenna Ports: 2 RP-TNC female ports (connects to RP-TNC male), monostatic
Dimensions: 190.5 x 175.3 x 30.5 mm (7.5 x 6.9 x 1.2 in)
Weight: 0.7 kg (1.5 lbs)
ENVIRONMENT:
IP Rating: IP 52
Operating Temperature: -20 ºC to +50 ºC (-4 ºF to +122 ºF)
APPLICATION INTERFACE:
Host API: Java, .NET
Demo Software: ItemTest
UNIVERSAL POWER SUPPLY AND AC POWER CORD
For readers and
gateways and GPIO box, the universal power supply and specific regional
power cord are optional, depending on whether or not the Power over
Ethernet (PoE) option is used. If the PoE option is not used, you must
order a universal power supply and specific regional power cord.
