The RWM-600 is an RFID module that can be easily used for integration into own systems, machines, terminals and other devices. Use the module to write and read all ISO/IEC-15693 compatible transponders and smart labels, such as I-CODE SLI or Tag-It HF-I from a distance of up to 20 cm. The RWM-600 is available either as separate module or as fully functional kit for immediate use that includes all required parts The development kit includes the add-in reader/writer

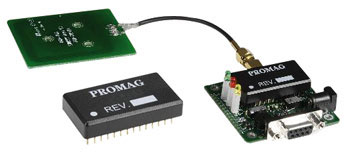

The RWM-600 is an RFID module that can be easily used for integration into own systems, machines, terminals and other devices. Use the module to write and read all ISO/IEC-15693 compatible transponders and smart labels, such as I-CODE SLI or Tag-It HF-I from a distance of up to 20 cm. The RWM-600 is available either as separate module or as fully functional kit for immediate use that includes all required parts The development kit includes the add-in reader/writer with serial port RS232 or RS485, an aerial and of course demo software with many functions. The system is located on an add-on board and has a SUB-D port for data access, a standard aerial port and jack socket for power supply.
OEM RFID read/write module
For 13.56 MHz, ISO 15693
Kit incl. demo software,
protocols and DLLs
Access of up to 16 smart labels simultaneously
Very compact circuit board
only 55x50x15 mm
Also suitable for outdoor use
RS232, Wiegand or Magstripe port
The device uses the open protocol standard GNet Plus for which various tools and development kits are available. The provided software demonstrates exactly how access and data manipulation of smart labels works. It is provided as a binary version as well as source code in Visual Basic 6 and C. Furthermore, the package contains communication libraries that are used to integrate the hardware into different operating systems and programming languages.
