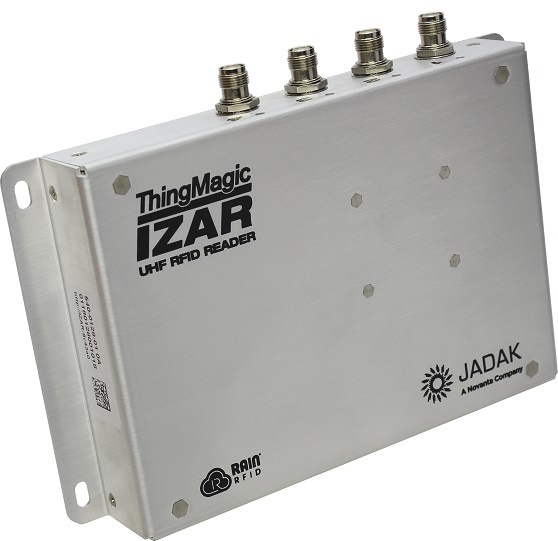

ThingMagic IZAR is a compact, programmable, network-attached reader with both read and write capability. State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications, such as retail, transportation, and medical customers. This UHF RFID finished reader is ideal for customers who need to implement a high-performing RFID system while minimizing engineering costs, as it is ready to use out-of-the-box
ThingMagic IZAR is a compact, programmable, network-attached reader with both read and write capability. State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications, such as retail, transportation, and medical customers.
This UHF RFID finished reader is ideal for customers who need to implement a high-performing RFID system while minimizing engineering costs, as it is ready to use out-of-the-box and easy to integrate when design resources are limited. With output power levels of up to +31.5 dBm and high receiver sensitivity, this powerful reader allows on-reader applications and processes, increasing efficiency and eliminating the need for additional processors, reducing customer design time.
Features:
• Size/Dimensions: 194mm (L) x 139mm (W) x 33.6mm (H)
• 4-Port Antenna Ports Provides Improved Read Coverage
• Built Around Proven ThingMagic Technology
• Broadest Range of Operating Temperatures for Both Indoor and Sheltered Outdoor Environments
• ThingMagic Universal Reader Assistant and Mercury API Shortens Testing and Development Process
• Optional RAINstream to Allow Direct Transfer of Tag Data to Backend Systems Via Several Alternative Protocols
Applications:
• Cabinets and Lockers
• Portals
• In-Vehicle
• Warehouse & Supply Chain
• Inventory Monitoring
• Access Control
Features & Benefits:
• Built Around Proven ThingMagic Technology
• User-friendly web interface included in software
• Broadest Range of Operating Temperatures for Both indoor and Sheltered Outdoor Environments
• ThingMagic Universal Reader Assistant and Mercury API ShortensTesting andDevelopment Process
• Optional RAINstreamto Allow Direct Transfer of Tag Data to Backend Systems Via Several Alternative Interface ProtocolsEliminates Software Design
ThingMagic IZAR combines quality and performance in an affordable and compact design. A programmable network-attached reader with read and write capability, it's designed for medical, retail and transportation customers who need to implement a high-performing RFID system while minimizing engineering costs.
ThingMagic IZAR is a compact, programmable,4-port RAIN UHFRFID network attached reader with both read and write capability. State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications. Output ower
levels of up to +31.5 dBm and high receiver sensitivity permit longer read distances.
Powerful Processor
ThingMagic IZAR is embedded with a powerful ARM Cortex processor running the Linux Operating System (OS), and generous amounts of DDR and FLASH memory, allowing complex on-reader programs to be written with the aid of JADAK’s custom
Mercury APl SDK. For those who simply need a data stream over networkor serial interfaces, JADAK offers the proprietary RAINstream application.
“Tagnostic”
ThingMagic IZAR supports the entire suite of RAIN UHF RFID tag functionality, including Gen2V2 security. It also supports custom features from a wide variety of tag vendors, enhancing functionality for specialized applications. Optional, non-RAIN tag protocols are also available, including ISO 18000-6B, IP-X and AEI ATA (transportation).
RAINstream Compatible
All settings, including those for RAINstream, can be configured via a web interface sourced by the reader. This interface also permits the administrator to view status, upgrade firmware, run diagnostic tests, and test reading ability.
Common Language
Mercury API, ThingMagic’s universal programming interface, permits easy software portabilityacross the entire ThingMagic product line–between finished readers and embdedded modules.
Multiple Data Interfaces
Control and data gathering connections to ThingMagic IZAR can be made over both LAN and client USB interfaces. Other interfaces can also be supported by adapters connected to the USB host interface, including WiFi, Bluetooth, and serial connections.
JADAK ( ThingMagic ), recognize the importance of managing product life cycles and allowing our customers sufficient time to plan when a product is at end of life. The ThingMagic Mercury6 finished reader has served our customers for more than 8 years but unfortunately, one of the key components of the Mercury6 finished reader is no longer available. Due to this component obsolescence, JADAK is forced to retire the ThingMagic Mercury6 finished reader.
IMPORTANT NOTE: ThingMagic M6e embedded module family is still available for purchase. It is only the Mercury6 finished reader that is being retired.
In light of this retirement, JADAK recently introduced a new product: ThingMagic IZAR – a 4-port UHF RFID Reader, which serves as a superior replacement of the Mercury6. The ThingMagic IZAR provides significantly better performance than the Mercury6 and comes at a lower cost. ThingMagic IZAR is an LLRP reader and also supports the ThingMagic Mercury API, which eases the migration path from the Mercury6 to the IZAR. Please see attached for the ThingMagic IZAR spec sheet.
Last time buy orders for the ThingMagic Mercury6 finished reader must be received on or before September 31st, 2018. Please note that last time buy orders may not be cancelled, and all last time buy orders will be shipped on or before December 31st, 2018. JADAK’s commitment to service and support, will honor all existing one-year warranties.
JADAK specializes in HF and RAIN UHF RFID products and services that help customers solve unique inspection, tracking, scanning and documenting challenges. Our engineering and applications teams will work with you to identify the best alternate replacement option for your needs and develop a migration path.
JADAK's ThingMagic IZAR, 4-Port UHF RFID Finished Reader
Combining Quality and Performance in an Affordable and Compact Design
ThingMagic IZAR is a compact, programmable, 4-port RAIN UHF RFID network-attached reader with both read and write capability. Designed for medical, retail, and transportation customers who need to implement a high-performing RFID system while minimizing engineering costs, this UHF RFID finished reader is ready to use out-of-the-box and is easy to integrate for customers with limited design capability.
ThingMagic IZAR is a powerful reader that allows on-reader applications and processes, increasing efficiency and eliminating the need for additional processors, reducing customer design time. State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications while output power levels of up to +31.5 dBm and high receiver sensitivity permit longer read distances.
ThingMagic® IZAR Fixed Mount HF/ UHF / RAIN RFID Reader is JADAK’s compact, programmable, network-attached fixed reader capable of both read and write RFID functions.
Fitted with four (4) UHF antenna ports and designed for easy integration into enterprise applications such as warehouses and supply chains, emergency medical services, mobile asset management, and construction and sheltered outdoor uses. IZAR is ideal for customers who need to implement a high-performing RFID system while minimizing engineering costs, since it is ready to use out-of-the-box.
Small and low profile, IZAR is an all-in-one unit with onboard processor, DDR memory, and removable flash storage port. It runs Linux operating system and combined with ThingMagic Mercury API, offers unparalleled flexibility in custom design programming.
It’s easily configurable via web interface where users can view status, upgrade firmware, run diagnostics and test scan (optional RAINstream configures via web interface). It has a max range of 30 ft (10 m), adjustable RF output range (0 dBm to +31.5 dBm) and it supports the EPC Gen2V2 and ISO 18000-63 standard, reading tags at a rate of 750 tags/sec.
Multiple data interfaces including: Ethernet, Micro SD, USB Type A (accessory port), USB Type B (client console, memory stick port), and 12 GPIO pins; support for wireless via 3rd party accessories is available.
ThingMagic IZAR is further customizable: optional RFID protocols are supported such as AEI ATA (read-only), IP-X (read-only) and ISO 18000-6B; optional RAINstream support which allows transfer of tag data directly to backend systems using one or more several alternative protocols.
Features & Benefits:
• Built Around Proven ThingMagic Technology
• User-friendly web interface included in software
• Broadest Range of Operating Temperatures for
Both indoor and Sheltered Outdoor Environments
• ThingMagic Universal Reader Assistant and Mercury API Shortens Testing and Development Process
• Optional RAINstream to Allow Direct Transfer of Tag Data to Backend Systems Via Several Alternative Interface Protocols Eliminates Software Design
State-of-the-art performance of over 750 tag reads per second allows ThingMagic IZAR to be used in a wide variety of applications. Output power levelsmi of up to +31.5 dBm and high receiver sensitivity permit longer read distances.
Powerful Processor ThingMagic IZAR is embedded with a powerful ARM Cortex processor running the Linux Operating System (OS), and generous amounts of DDR and FLASH memory, allowing complex on-reader programs to be written with the aid of JADAK’s custom Mercury APl. For those who simply need a data stream over network or serial interfaces, JADAK offers the proprietary RAINstream® application.
RAINstream Compatible All settings, including those for RAINstream, can be configured via a web interface sourced by the reader. This interface also permits the administrator to view status, upgrade firmware, run diagnostic tests, and test reading ability.
“Tagnostic” ThingMagic IZAR supports the entire suite of RAIN UHF RFID tag unctionality, including Gen2V2 security. It also supports custom features from a wide variety of tag vendors, enhancing functionality for specialized applications. Optional, non-RAIN tag protocols are also available, including ISO 18000-6B, and read-only support for IP-X and AEI ATA.
Common Language Mercury API, ThingMagic’s universal programming interface, permits easy software portability across the entire ThingMagic product line – between finished readers and embdedded modules.
Multiple Data Interfaces Control and data gathering connections to ThingMagic IZAR can be made over both LAN and client USB interfaces. Other interfaces can also be supported by adapters connected to the USB host interface, Bluetooth, and serial connections
ThingMagic IZAR is further customizable: optional RFID protocols are supported such as AEI ATA (read-only), IP-X (read-only) and ISO 18000-6B; optional RAINstream support which allows transfer of tag data directly to backend systems using one or more several alternative protocols.
Features and Benefits
Built on proven ThingMagic technology
User-friendly web interface
Customizable and flexible with ThingMagic® Universal Reader Assistant and Mercury API
RAINStream Technology for seamless integration with backend data systems
Applications
Inventory management: automatically track mobile assets in the healthcare facility
Surgical tools tracking: track surgical tools at the cart, tray or item level, ensure kits are filled out properly and maintain sterilization records for tools
Applications:
• Cabinets and Lockers
• Portals
• In-Vehicle
• Warehouse & Supply Chain
• Inventory Monitoring
• Access Control
