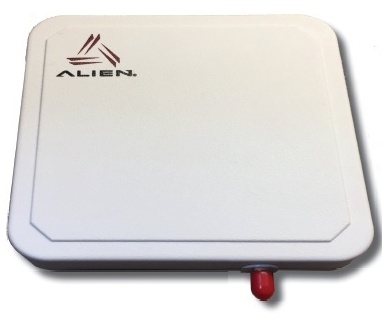

Alien ALR-A0501 Compact 5.0” square 6dBic UHF RFID Antenna
The Alien Technology ALR-A0501 is a compact 5”x5”, 6dBic gain circular-polarized antenna for use in applications where footprint is critical or a small to medium read distance is preferred.
Built to keep the dust and moisture out Weather and UV resistant Designed for a variety of inside and outside applications that demand a robust IP67 antenna
Space Efficient Small SMA Connector and small 5” x 5” footprint and fits into space constrained areas.
Features:
• Small Footprint • Dust and spray resistant radome (IP67) • SMA female connector • RoHS EU 2002/95/EC compliant
Applications:
• Tag Commissioning • Distribution centers • Airports and hospitals • Transit terminals • Warehouses
The Alien Technology’s ALR-A0501 UHD RFID antenna is small footprint (5”square) 6dBi gain, circularly polarized panel antenna that provides reception and transmission of signals either in the in the 902-928 MHz frequency band or the 865-868 MHz frequency band.
The design methodology achieves maximum efficiency and performance across the entire frequency band and tag orientations. Both VSWR and axial ratios are both excellent and allow the user to achieve the maximum performance for an antenna of this size. The antenna is housed in a heavy duty radome enclosure to protect from dust and moisture ingress.
