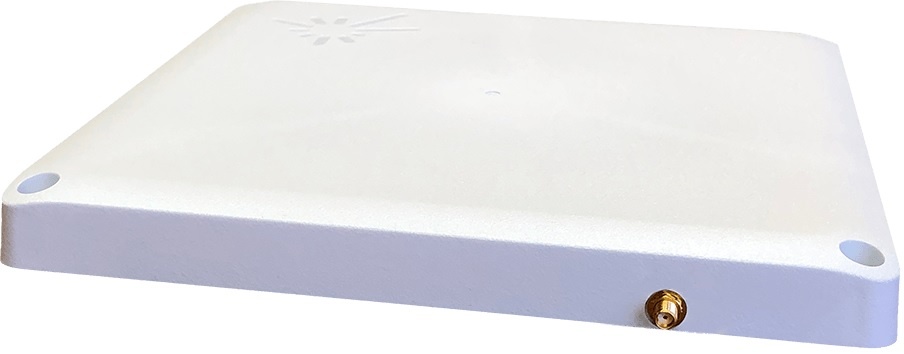

BCT-1020 is a rugged high performance circular polarised antenna with 13dBi of gain, packed in a compact low profile polycarbonate covering with plenum rating and fire resistant properties, the antenna is designed aesthetically for industrial and commercial purpose usage, it can withstand under critical to harsh environmental conditions with an IP rating 68.BCT-1020 is an industry leading ultra-low profile design in a compact UHF RFID antenna size 250mm x 250mm x
BCT-1020 is a rugged high performance circular polarised antenna with 13dBi of gain, packed in a compact low profile polycarbonate covering with plenum rating and fire resistant properties, the antenna is designed aesthetically for industrial and commercial purpose usage, it can withstand under critical to harsh environmental conditions with an IP rating 68.
BCT-1020 is an industry leading ultra-low profile design in a compact UHF RFID antenna size 250mm x 250mm x 20mm square footprint. Rugged IP67 rated for permanent outdoor use and built to high standard for quality and robustness, the circularly polarized is a high performance circular polarised antenna offers high level of performance and durability in an aesthetically superior form.
Proven in a diverse and growing range of markets applications include retail & customer interaction, conferences & people tracking, race timing, baggage handling and logistic & supply chain asset management.
BCT-1020 Circular Polarised UHF RFID Antenna is designed to support either flush or VESA mount. To accommodate both approaches, versions with either flush or studded backplates are supported.
Features: Frequency Range: Global (860-930) MHz ETSI/FCC/Worldwide Polarization: CP (Circular Polarised) Size/Dimensions: (L x W x D) 250mm x 250mm x 20mm (10” x 10” x 0.8”) inches Environmental Rating: IP 68 Operating Temperature: -25°C to 70°C
Storage Temperature: -13°F to 158°F
Mounting: Flush or Vesa Mount Connector Type: SMA Female Type connector
