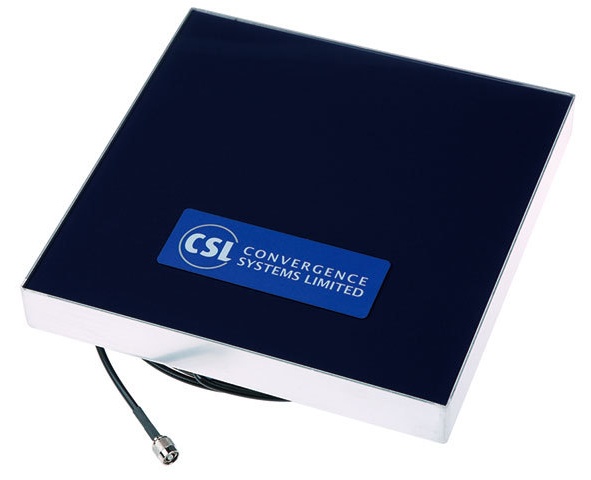

Convergence CS772 Linear Polarized UHF RFID Antenna
CS772 Linear Polarized UHF RFID Far Field Antenna for long-range operation where the tag polarization is known and controllable. The antenna connects via a 3-meter cable to a TNC Reverse Polarity plug connector that is compatible with CS461 fixed reader.Features:• Single Antenna Element• Linear Polarization• Excellent matching for best RFID read performance• Ruggedized
CS772 Linear Polarized UHF RFID Far Field Antenna for long-range operation where the tag polarization is known and controllable. The antenna connects via a 3-meter cable to a TNC Reverse Polarity plug connector that is compatible with CS461 fixed reader.
Features: • Single Antenna Element • Linear Polarization • Excellent matching for best RFID read performance • Ruggedized operation
Specifications: Physical Characteristics (LxWxH): 300mm x 300mm x 40mm Weight: 5 lbs Mounting: 2 x 2 mounting stud, horizontal separation 5.875 inches, vertical separation 2.75 inches, ¼ x 0.625 inch studs with 20 threads/inch threading Operating Temp: -20°C to 55°C (-4°F to 131°F) Storage Temp: -40°C to 85°C (-40°F to 185°F) Humidity: 5% to 95% Non-condensing Frequency Range: One of the following: 865-868 MHz, 865-867 MHz, 902-928 MHz, 952-954 MHz Polarization: Linear Peak Gain: 9 dBi Front-to-Back Ratio: 20 dB Beamwidth: 54 degrees Impedance: 50 ohms Return Loss: Better than 20 dB down Input Power: 10 Watts ESD: 10 KV (no ESD sensitive component)
Order Code CS772C-024-N (N=1: 865-868 MHz for Europe & 865-867 MHz for India, N=2:902-928 MHz, C=S: SMA Reverse Polarity Connector, C=N: N Reverse Polarity Connector, C={none}: TNC Reverse Polarity Connector, 024=standard 2.4m cable and please discuss with CSL sales department for special requirements)
