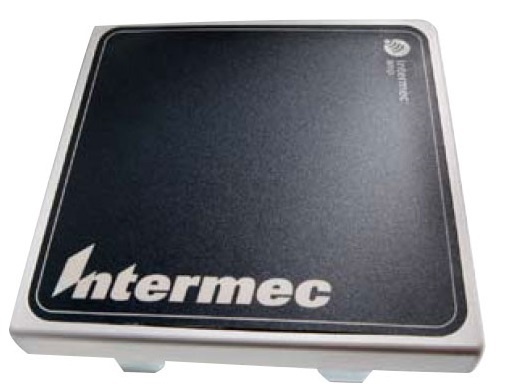

Honeywell Intermec IA33D / IA33E UHF RFID Antennas Cells - Flexible and configurable to support changing application needs. With its unique, mostly metal design, the Intermec IA33D / IA33E Antenna Cell are RFID antennas specifically developed for forklift installations where shock and vibration can far exceed the specifications of antennas designed for fixed RFID reader applications. Complete with mounting hardware, IA33D / IA33E Antenna Cell can be mounted with no
Honeywell Intermec IA33D / IA33E UHF RFID Antennas Cells - Flexible and configurable to support changing application needs. With its unique, mostly metal design, the Intermec IA33D / IA33E Antenna Cell are RFID antennas specifically developed for forklift installations where shock and vibration can far exceed the specifications of antennas designed for fixed RFID reader applications.
Complete with mounting hardware, IA33D / IA33E Antenna Cell can be mounted with no drilling, cutting or welding which enables fast and inexpensive installations for a single forklift or fleet deployments. IA33D / IA33E Antenna Cell are available in both FCC and ETSI frequencies
With its unique, mostly metal design, the Intermec Antenna Cell is an RFID antenna specifically developed for forklift installations where shock and vibration can far exceed the specifications of antennas designed for fixed RFID reader applications.
Complete with mounting hardware, Antenna Cells can be mounted with no drilling, cutting or welding which enables fast and inexpensive installations for a single forklift or fleet deployments. Antenna Cells are available in both FCC and ETSI frequencies.
Antenna Cells leverage another new product, the Adaptable Load Backrest (ALBR), developed in partnership with Cascade Corporation, the world’s leader in the design and manufacture of lift truck attachments. The Antenna Cells can be mounted into an ALBR in about a half hour, as opposed to spending a day of field engineering time, and approximately @ £2000 in expense, to install RFID equipment onto a forklift the “old fashioned” way.
The ALBR neatly and precisely compartmentalizes the Antenna Cells and RFID reader into areas of the load backrest that don’t obstruct the operator’s vision and are protected from damage. In addition, the ALBR provides built-in Antenna Cell cable routing for protection for vulnerable cables and a professional looking installation.
Antenna Cells mounted into ALBRs are flexible and configurable for quick and inexpensive re-configurations to support changing application needs such as converting from pallet tag reading to case level reading. This modular approach enables Antenna Cells to be interchangeable for quick replacement of damaged parts lessening slow downs in a busy operation.
The ALBR and Antenna Cells not only improve operator performance and safety, they also significantly reduce the time and cost of RFID forklift deployments.
With the ALBR and Antenna Cells, the installation of an RFID reader and antennas no longer needs to involve labor-intensive customization of the load backrest or fork truck. Durable, reliable installations of these products should last the life of a typical forklift lease.
Antenna Cells manufacturered by Honeywell Intermec Technologies hey are built to order for specific forklift models.
Features:
• Specifically developed for forklift installations
• Enables fast and inexpensive installations
• Flexible and configurable to support changing application needs
• Available in both FCC and ETSI frequencies
Specifications
Dimensions: 196 mm (h) x 196 mm (w) x 25 mm (d)
Weight: 1.4Kg
Mounting: Adaptable Load Backrest (ALBR) included
IP Rating: IP66
Connector: N Reverse Polarity
Environmental:
Operating Temperature -25 to 55°C
Storage Temperature -30 to 75°C
Relative Humidity: 10% to 90%(non-condensing)
Shock: 50 g, 8ms ½ sine, 5000 impulses each direction, each axis
Antenna Characteristics:
Frequency 902 to 928 MHz
Gain: 6.0dBi
Front to Back Ratio: 10dBi
Maximum Input Power: 10Watts
VSWR: < 1.5:1
Polarization: Right Hand Circular
H-Plane Beamwidth: 82 dedgrees (Half Power) (When mounted in the adjustable load back rest)
E-Plane Beamwidth: 82 dedgrees (Half Power)
Impedance: 50 ohms
Connector: N-Type Jack (Reverse Polarity)
Honeywell Intermec IA33D / IA33E UHF RFID Antenna Cell (FCC and ETSI)
Extremely rugged, mostly metal Antenna Cell is specifically designed for RFID lift-truck applications. Its compact design fits within the confines of the Adaptable Load Backrest, and is available in both FCC an ETSI frequencies.
Honeywell Intermec IA33A Panel Antenna (FCC)
The IA33A Panel Antenna is circularly polarized, and is appropriate for indoor use in FCC-regulated environments. The IA33A supports all fixed RFID readers, and can support vehicle-mount readers in some applications.
Honeywell Intermec IA33B Low-Profile Panel Antenna (ETSI)
The IA33B Panel Antenna is a circularly polarized panel antenna designed with a low profile. The IA33B is appropriate for indoor use in ETSI-regulated environments, and supports all fixed RFID readers, as well as vehicle-mount readers in some applications.
Honeywell Intermec IA33F Standard-Range Panel Antenna (ETSI)
The IA33F Panel Antenna is a medium- to long-range antenna designed to support stationary RFID applications in indoor, ETSI-regulated environments. It is closely related to the IA33G, which serves FCC-regulated environments. The IA33F Panel Antenna is RoHS-compliant, with right-hand circular polarization.
Honeywell Intermec IA33G Standard-Range Panel Antenna (FCC)
Closely related to the IA33F, the IA33G Panel Antenna is also a medium- to long-range antenna, but is instead designed for use in FCC-regulated environments. The IA33G Panel Antenna supports indoor, stationary RFID applications, and like the IA33F, it is RoHS-compliant, with right-hand circular polarization.
Honeywell Intermec IA33H Long-Range Panel Antenna (FCC)
The IA33H Panel Antenna is designed for a longer read range – it supports stationary RFID applications in indoor, FCC-regulated environments where readers must spaced at greater distances. The IA33H Panel Antenna is a right-hand circularly polarized antenna; for left-hand circular polarization, see the closely related IA34B.
