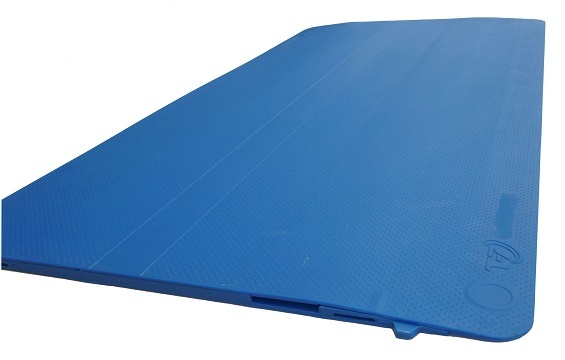

The SlimLine A5530 is an ultra-low profile ground floor mat antenna. Its total thickness is just 12 mm. Two versions are available, one for the (ETSI) 864 MHz – 869 MHz band and one for the US (FCC) 902 MHz – 928 MHz band. It can be used for UHF RFID applications optimized for moving products or assets, in particular where side antennas are unsuitable. Its rugged, durable design is suitable for industrial applications.

Times-7’s unique range of ground antennas the A5530 is a high performance ground mat antenna optimized for applications involving moving products, assets and people. Offering unmatched performance in event and race timing, the A5530 is ideal for RFID deployments where an ultra-low profile, robust and weather resistant antenna is required. At just 12 mm / 0.5“thick, the durable A5530 has superb aesthetics, IP66 rating, and load bearing capabilities. With increased versatility, flexibility and performance over traditional side antennas, the unique A5530 ground mat antenna is in a class of its own.

The mat antenna includes an SMB-SMA adapter for better protection and easy cable replacement.

The A5530 is available in both, circular and linear polarization

Operating Region:
•    USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards
•    EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standards

Ultra-low profile ground mat antenna Just 12 mm / 0.5 in. thick IP66, robust design & superb aesthetics Ideal for event / race timing applications

Technical Specifications:
•    Dimensions     1220 x 600 x 12 mm
•    Frequency Range     902-928MHz (FCC); 865-867MHz (ETSI)
•    Connector Type     SMA female
•    Antenna Gain     9.5dBiC; 10dBi
