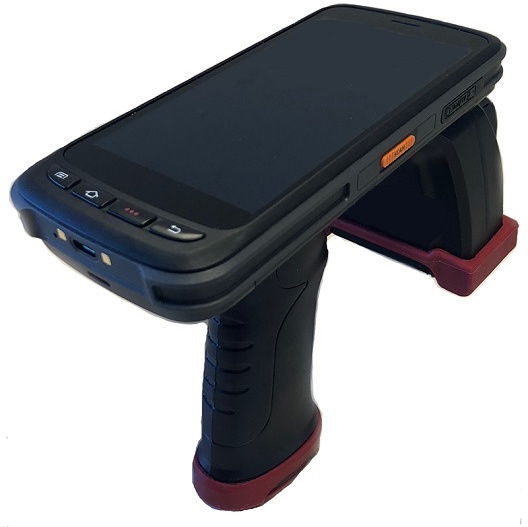

Alien ALR-H460 and H480 Android 6.0 OS UHF RFID Reader and 1D / 2D barcode scanning is the ultimate mobile RFID handheld device, featuring WiFi 802.11 b/g/n, 4G cellular built in, Bluetooth 4.0 BLE, 13MP Auto-focus camera with flash, GPS, unsurpassed data processing capability, memory, ergonomics, and affordability, in one compact package. It is feature-rich includes large 5.2” 1920×1080 resolution display, High capacity lithium-polymer battery, Open source
Alien ALR-H460 and H480 Android 6.0 OS UHF RFID Reader and 1D / 2D barcode scanning is the ultimate mobile RFID handheld device, featuring WiFi 802.11 b/g/n, 4G cellular built in, Bluetooth 4.0 BLE, 13MP Auto-focus camera with flash, GPS, unsurpassed data processing capability, memory, ergonomics, and affordability, in one compact package.
It is feature-rich includes large 5.2” 1920×1080 resolution display, High capacity lithium-polymer battery, Open source Android software development and combines best-in-class ease of use and integration tools with a powerful RFID engine, enabling exceptional performance in the most demanding of scan environments and applications.
H460- Operating Frequency: FCC (902-928 MHz)
H480 - Operating Frequency: ETSI (865.6-867.6 MHz)
Main features: FCC 902–928 MHz for USA & Canada
EIRP 3.3W
1D & 2D imager supporting all major 1D / 2D barcode scanning
13 MP Auto-focus camera with flash
Ergonomic design provides superior user comfort and use
Supports Wi-Fi, Bluetooth and 4G cellular connectivity
Robust IP64 sealing for dust and water resistance
Prolonged usage enabled by built-in 8,000 mAh Li-Po rechargeable battery
Android 6.0 OS
Applications: • Retail
• Warehouse
• Work in Progress
• Transportation
• Missing item location
Ease of Use Large 5.2” 1920×1080 resolution display, High capacity lithium-polymer battery, Open source Android software development
Simplifies data input
All day usage without recharging
Easy to provide custom apps
High Performance Unique high-performance, high gain antenna
Cortex-A53 Quad-Core 1.3 GHz CPU
Android 6.0 Operating System
Superior read range
Fast data collection & processing
Proven Android speed & agility
A feature-rich handheld WiFi 802.11 b/g/n, 4G cellular built in, Bluetooth 4.0 BLE, 13MP Auto-focus camera with flash, GPS,
Wireless simplicity
Always connected
Allows connection to corporate networks
Robust Design Dust and water ingress protection (IP64)
Solid drop tested design (1.0m/3ft)
What's included:
Alien ALR-H460 Handheld RFID Reader Unit
Pistol Grip
USB Cable
Power Adapter (Region Specific)
1-Year Manufacturer's Warranty
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz), ETSI (865.6-867.6 MHz)
Antenna Type: 1diL / 4 dBic circular antenna
Max Read Distance: Testing recommended
Scanner: 2-D bar code (752 x 480 pixels)
Operating System: Android 6.0
Data Interface: Wireless WLAN 802.11 b/g/n, WWAN, Bluetooth 4.0 BLE, GPS (embedded A-GPS), USB
Memory: 2GB RAM / 16GB Flash
Expansion Memory: MicroSD (32GB Max)
Expansion Slot: 1 Micro SD slot, 1 SIM slot, 1 PSAM slot
Power source: 8000 mAh internal
Camera: 13 MP auto-focus color camera with built-in flash
MECHANICAL:
Dimensions (without gun handle): 178 x 140 x 86 mm (7 x 5.5 x 3.4 in)
Weight (with gun handle and all batteries): 0.652 kg (1.44 lbs)
ENVIRONMENT:
IP Rating: IP 64
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
APPLICATION INTERFACE:
Host API: Alien SDK
Demo Software: Included
