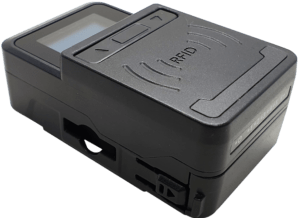

KOAMTAC KDC180U Wearable Barcode Scanner & UHF RFID Reader is a compact and lightweight KDC180 designed with KOAMTAC’s Ring Scanner or Finger Trigger Glove in mind to create the perfect wearable solution for your business. The KDC180 can also be used as a peripheral/handheld reader without wearable functionality.KOAMTAC KDC180U Wearable Barcode Scanner & UHF RFID Reader has a 1.0″ OLED display along with a set of 5 programmable LED indicators provides
KOAMTAC KDC180U Wearable Barcode Scanner & UHF RFID Reader is a compact and lightweight KDC180 designed with KOAMTAC’s Ring Scanner or Finger Trigger Glove in mind to create the perfect wearable solution for your business. The KDC180 can also be used as a peripheral/handheld reader without wearable functionality.
KOAMTAC KDC180U Wearable Barcode Scanner & UHF RFID Reader has a 1.0″ OLED display along with a set of 5 programmable LED indicators provides feedback to the user. The KDC180U comes standard with 0.5W UHF tag reading capabilities. Additionally, equip your KDC with a 2D imager scan engine to add barcode reading capabilties. Also, the KDC180 features a removable battery, allowing you to easily swap batteries on the fly!
KOAMTAC KDC180U Wearable 0.5W UHF RFID Reader comes with KTSync® software and SDK for Android, iOS, and Windows devices. KTSync includes a keyboard wedging feature, application generation, DB lookup, inventory management, and KDC configuration features. SDK provides technical support from our top engineers and development team.
KOAMTAC KDC180U Wearable 0.5W UHF RFID Reader is available with and without Barcode Scanner
FEATURES:
Rugged - KDC180 is IP65-rated and has a 6' drop spec. This means the device is dust tight and water resistant; it's ideal for any environment.
Powered - Advanced power management puts the scanner in "hibernation mode" when not actively in use, allowing the battery to outlast an average work shift. When power does run out, easily charge the C via USB, charging cradle, or swap the rechargeable/replaceable battery. Some KDC180 models support inductive charging allowing you to charge using your favorite wireless charging pad.
Designed - KDC180 easily and securely integrates with the Ring Trigger and Safety Glove wearable accessories. The 1" OLED display along with a set of 5 programmable LED indicators provides scan feedback to the user. Additionally, the KDC180 is available in models including a number pad allowing for manual entry of unreadable or problematic barcodes.
Connected - KDC180 features Bluetooth® Low Energy 5.0 to enable faster and simpler connection methods for use with smart watches, smart glasses, and other wearable smart devices. BLE offers low power consumption and fast data transmission while maintaining an uncompromised connection. The KDC180 also features NFC Pairing to Android host devices enabling users to connect in HID or SPP by simply approaching the NFC area of the host device with the KDC180.
Equipped - All KDC180 models are equipped with 2D imager scan engines capable of reading all major barcode symbologies and offer three different read ranges: standard range (KDC180H), medium range (KDC180MR), and extended range (KDC180ER). This provides businesses with the flexibility to choose the best option for their scanning needs, whether it’s scanning up close or from a greater distance.
The KDC180 is also available in models with an integrated UHF reader capable of reading popular RFID standards.
KTSync® software with keyboard wedging, application generation, database look up, inventory management, and KDC configuration features is included for Android, iOS, and Windows devices. Complementary SDK for Android, iOS, Mac OS X, Windows, Xamarin, and Cordova and technical support from top engineers and the development team ensure ease of
data collection in any situation
Regulatory ConformanceRED, FCC, KC, TELEC, VCCI, SRRC, RoHS Compliant, SRRC (CMIIT No.: 2020DJ6766), LED Safety: IEC62471:2006
Scan Range (20mil Code39) (Barcode Model Only)
KDC180: 1.73″ to 31.5″ (44 mm to 800 mm)
Symbologies (Barcode Model Only)
Imager (1D): Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1
Imager (2D): Aztec Code, Aztec Runes, Codablock F, Code 16K, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code
Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
KOAMTAC KDC180U Wearable UHF RFID Reader
382630
KDC180H 2D Imager Wearable Barcode Scanner & Data Collector with 0.5W UHF RFID Reader
38275
KDC180 Ring Trigger Double
382910 KDC180 Ring Trigger for Right Hand
KDC180 Ring Trigger for Right Hand
382780
KDC180 Ring Trigger for Right Hand
382790
KDC180 Ring Band
382800
KDC180 Finger Trigger Glove – XSmall, Right Hand
382840
KDC180 Finger Trigger Glove – Small, Right Hand
382810
KDC180 Finger Trigger Glove – Medium, Right Hand
382820
KDC180 Finger Trigger Glove – Large, Right Hand
382830
KDC180 Finger Trigger Glove – XSmall, Left Hand
382880
KDC180 Finger Trigger Glove – Small, Left Hand
382850
KDC180 Finger Trigger Glove – Medium, Left Hand
382860
KDC180 Finger Trigger Glove – Large, Left Hand
382870
