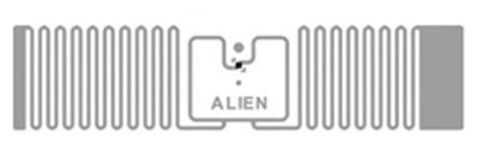

Alien ALN-9613 “SIT” - Small Item UHF Gen2 inlay Tag
Alien ALN-9613 SIT Inlay - The Alien Technology® ALN-9613 “SIT” (Small Item Tag) is a small near-field inlay, perfect for ultra-compact, item-level tagging applications where size is of outmost concern or where range must be limited.Applications:• Jewellery Tags• Pharmaceutical vials• Bottles• Syringes• Blister packs• Liquids• Food product packaging• Software/video DVD’s• ISO Access Control or loyalty cards• Fashion Apparel• Numerous
Alien ALN-9613 SIT Inlay - The Alien Technology® ALN-9613 “SIT” (Small Item Tag) is a small near-field inlay, perfect for ultra-compact, item-level tagging applications where size is of outmost concern or where range must be limited.
Applications: • Jewellery Tags • Pharmaceutical vials • Bottles • Syringes • Blister packs • Liquids • Food product packaging • Software/video DVD’s • ISO Access Control or loyalty cards • Fashion Apparel • Numerous counterfeiting applications where the tag can be easily concealed
Product Overview: Powered by Alien’s break-through Higgs3 UHF RFID IC, the “SIT” is a near-field (aka magnetic or inductive) coupled antenna design, the ALN-9613 delivers industry leading EPC Gen2 performance and reliability in an ultra compact form factor.
The “SIT” is especially well-suited for very small item-level applications where geometries are critical. The near-field coupling properties make this tag ideal where read range requirements are short or for applications on aqueous materials. With its Higgs-3 core, the SIT delivers excellent performance and a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data. ALN-9613 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.
Features: Ultra Compact size Near-field coupling Capable of converting to far field by coupling to conductive packaging Exceptional performance Designed to meet EPC global Gen2 (V1.2.0) and ISO/IEC 18000-6C Worldwide RFID UHF Gen2 operation Higgs3 IC with 800-bits of Non-volatile memory - 32-bit TID - 64-bit Unique TID - 96-bit EPC Memory, extendable to 480-bits - 512-bit User Memory - 32-bit Access password - 32-bit Kill password Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication) User Memory can be Block Perma-Locked User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
Supports all Mandatory and Optional Gen2 commands including item level Custom commands for high speed programming
