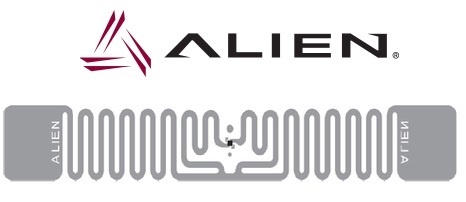

Alien ALN-9830 UHF Gen2 RFID Squiglette Higgs™-EC Inlay Tag
The Alien Technology® ALN-9830 “Squiglette” is a narrower version of its high-performance, general-purpose Higgs™-EC Squiggle® sibling. Brings all the Higgs™-EC advantages to highly-effective “Squiglette” Inlay.Product Overview: Powered by Alien®’s volume focused Higgs™-EC UHF RFID IC and innovative Squiglette antenna design, the ALN-9830 delivers industry leading EPC Gen 2 read and write performance in a narrower width than it’s bigger brother,
The Alien Technology® ALN-9830 “Squiglette” is a narrower version of its high-performance, general-purpose Higgs™-EC Squiggle® sibling. Brings all the Higgs™-EC advantages to highly-effective “Squiglette” Inlay.
Product Overview: Powered by Alien®’s volume focused Higgs™-EC UHF RFID IC and innovative Squiglette antenna design, the ALN-9830 delivers industry leading EPC Gen 2 read and write performance in a narrower width than it’s bigger brother, the Squiggle®.
ALN-9830 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.
With its Higgs™-EC core, the Squiglette delivers next generation performance and a rich feature set, yet is completely optimized for the highest volume enterprise, retail, and apparel applications.
An optimized memory footprint includes a 32-bit TID, a 80- bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.
Typical applications for the Squiglette include, but are not limited to, apparel hang tags, corrugated cases, pallet placard labels, shipping labels, asset management, file folder labels and applications on plastics
Features: Designed to meet EPC global Gen2 (V1.2.0) and ISO/IEC 18000-6C Worldwide operation in the RFID UHF bands (860-960 MHz) 512-Bits of NVRAM Memory • 128-EPC Bits • 128 User Bits • 80 Bit Unique TID • 32 Bit Access and 32 bit Kill Passwords
Pre-Programmed with a unique, unalterable 64- bit serial number User Memory can be Block Perma-Locked as well as read password protected in 32 Bit Blocks Low power operation for both read and pro¬gram Dynamic Authentication™ - anti-cloning/anti-counterfeit technology Exceptional operating range, up to 13m with appropriate antenna. Available in high-yield, high capacity dry/wet inlay rolls
