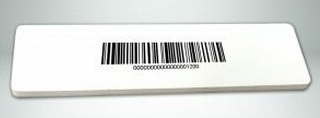

HID Global Omni-ID Flex 1200 UHF RFID Tags ESTI UK & EU - ETSI (866-868 MHz) provide both global and regional options, long read ranges and a small low profile form factor. As a cost effective option, the Flex range of tags are more rugged than an on-metal label. The Flex products are the ideal solution for high volume applications in manufacturing, IT and industry.HID Global Omni-ID Flex 1200 is a low profile, cost effective RFID tag with superior RF
HID Global Omni-ID Flex 1200 UHF RFID Tags ESTI UK & EU - ETSI (866-868 MHz) provide both global and regional options, long read ranges and a small low profile form factor. As a cost effective option, the Flex range of tags are more rugged than an on-metal label. The Flex products are the ideal solution for high volume applications in manufacturing, IT and industry.
HID Global Omni-ID Flex 1200 is a low profile, cost effective RFID tag with superior RF performance. Supplied with an over laminate surface for increased durability, the Flex 1200 is designed specifically as a low cost alternative to hard tags for applications demanding the protection of an over laminate and read ranges up to 12 meters.
Features: Lower cost than a hard tag.
Better size-to-performance ratio vs competitive products.
Longer read ranges than a label of the same size.
Designed with wider radiation patterns to allow reads from all angles.
Durable over laminate surface for added protection and sleek appearance.
Designed specifically for applications needing read ranges of up to 12 meters.
Custom printing and encoding available upon request.
Applications: - With its flexibility and consistent RF performance, the Flex 1200 is ideally suited to applications such as:
Office equipment
Light outdoor use
Portals & Returnable Transit Items (RTI)
ELECTRICAL:Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: ETSI (866-868 MHz)
IC Type: Impinj Monza R6-P
Memory: EPC 128/96 Bits, User 32/64 Bits, TID 48 Bits
EPC Memory Content: Unique, randomized number
Max Read Distance (Fixed Reader): Up to 12 m (39.4 ft) - On metal, Up to 8 m (26.3 ft) - Off metal
Max Read Distance (Handheld Reader): Up to 6 m (19.7 ft) - On metal, Up to 4 m (13.1 ft) - Off metal
Applicable Surface Materials: Optimized for metal
MECHANICAL:Tag Form Factor: Label tag
Tag Materials: White synthetic label with transparent over laminate
Attachment Method: Film adhesive
Size/Dimensions: 75 x 25 x 2.5 mm (2.95 x 0.98 x 0.10 in)
Weight: 1.66 g
ENVIRONMENT:Operating Temperature: –40 ° to +85 °C (–40 ° to +185 °F)
HID Global Omni-ID Flex 1200 UHF RFID Tags Protocol EPC Class 1 Gen2v2, Frequency Range 866-868Mhz (EU-ESTI), Material Compatibility Optimised for metal, IC Type Impinj Monza R6-P, Fixed Reader Up to 12m (on metal) Up to 8m (off metal), Handheld Reader Up to 6m (on metal) Up to 4m (off metal), Operation Temperature -40 to +85°C, Max Temperature Exposure -40 to +85°C, IP Rating IP68
