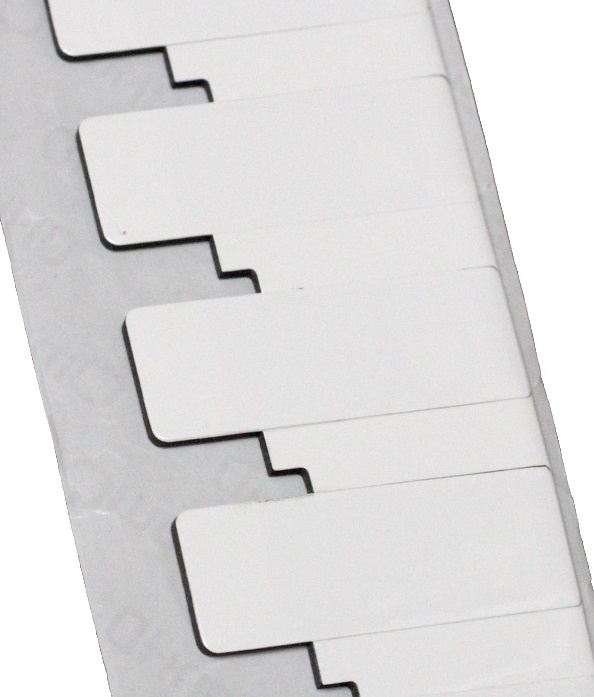

Omni-ID Flex 600 UHF RFID Tag Labels is a low profile, small form factor RFID tag designed specifically for attachment to office equipment. With its superior RF performance, this tag excels in portal applications expanding the read range to up to 9 meters. In addition, the Flex 600 tag is well suited to indoor applications where a low cost option is needed.Features: Flexible. Highly cost effective. Small low
Omni-ID Flex 600 UHF RFID Tag Labels is a low profile, small form factor RFID tag designed specifically for attachment to office equipment. With its superior RF performance, this tag excels in portal applications expanding the read range to up to 9 meters. In addition, the Flex 600 tag is well suited to indoor applications where a low cost option is needed.
Features:
Flexible.
Highly cost effective.
Small low profile form factors.
More rugged than on-metal labels.
Ideal solution for office equipment and portal setups.
Applications:
With a small footprint and consistent RF performance, the Flex 600 is ideally suited to applications such as:
Office equipment
Light outdoor use
Portals
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz), ETSI (866-868 MHz)
IC Type: Impinj Monza 4QT
Memory: EPC 128 bits, User 512 bits, TID 48 bits
EPC Memory Content: Unique, randomized number
Max Read Distance (Fixed Reader): Up to 6 m (19.7 ft) - On metal, Up to 3 m (9.8 ft) - Off metal
Max Read Distance (Handheld Reader): Up to 3 m (9.8 ft) - On metal, Up to 1.5 m (4.9 ft) - Off metal
Applicable Surface Materials: Optimized for metal
MECHANICAL:Tag Form Factor: Label tag
Tag Materials: White synthetic label
Attachment Method: Film adhesive
Size/Dimensions: 55.8 x 20 x 2.5 mm (2.20 x 0.79 x 0.1 in)
Weight: 1.1 g
ENVIRONMENT:Operating Temperature: –40 ° to +85 °C (–40 ° to +185 °F)
Size: 50 x 12.5 x 3.8mm ( 1.9 x 0.49 x 0.14inch ), Memory - EPC: 128 (96) bits, User: 32 (64) bits, IC Type (Chip) - Monza R6-P, IP Rating - IP68, Operating Temperature - (–40°C to +85°C)
