Xerafy Mercury Metal Skin UHF RFID Tags Thermal Transfer Label

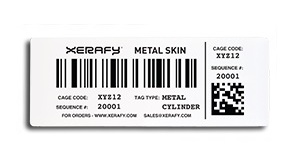

Xerafy Mercury Metal Skin UHF RFID Tags PrintableThermal Transfer Label is a revolutionary RFID smart label that works on both metallic and non- metallic assets. The label can incorporate human readable printing, barcodes, and graphics and s extremely low profile and flexible to fit curved surfaces such as the contour of metallic cylinders and drums.

Globally compliant to EPCglobal UHF Gen2 and ISO 18000-6C standards, the Metal Skin is cost effective and versatile for a wide range of applications from product authentication and IT asset tracking, to global tracking of assets shipped and anti- counterfeiting of high value items and medical supplies.

Xerafy Mercury Metal Skin Label is a versatile on-and-off metal label that can be printed on and encoded through an RFID printer.

Xerafy Mercury Metal Skin Label can be used with the following UHF RFID Thermal Transfer printers: Zebra RZ400, SATO CL4NX, SATO GT412e, and the Toshiba B-SX5T, and Toshiba SX4T.

Operating Frequencies Region:   FCC standards    USA - 902-928 MHz //   ETSI standards EU - 866-868 MHz

Size RFID Tag / Labels: 101.6mm x 38mm x 0.76mm

Features:
•   Versatile on-and-off metal tag.
•   High performance adhesive.
•   Perfect for IT asset tracking.

Specifications:

ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (860-960 MHz)
IC Type: Impinj Monza 4E
Memory: EPC 496 bits, User 128 bits, TID 48 bits
EPC Memory Content: Not guaranteed unique
Max Read Distance: Up to 5 m (16 ft)
Applicable Surface Materials: Metal and non-metallic substrates

MECHANICAL:
Tag Form Factor: Label tag
Tag Materials: White thermal transfer face stock
Recommended Ribbon: Full Resin
Compatible Printers: Zebra RZ400, SATO CL4NX, SATO GT412e, and the Toshiba B-SX5T, and Toshiba SX4T
Attachment Method: High performance adhesive
Dimensions: 101.6mm x 38mm x 0.76mm (4 x 1.5 x 0.03 in)
Weight: 2200 g

ENVIRONMENT:
Operating Temperature: -40° to +85°C (-40° to +185°F)
Application temperature   -40°F to +185°F (-40°C to + 85°C)
Operating temperature   -40°F to +185°F (-40°C to + 85°C)
Weight (reel)   2.2 kg (500 pcs)
Dimensions/tolerance (in)   4(+/- 0.04) x 1.5(+/- 0.03) x 0.03(+/- 0.004)
Dimensions/tolerance (mm)   101.6mm (+/- 1) x 38mm (+/- 0.8) x 0.76mm (+/- 0.1)
Printability   Excellent
Read range on metal   Up to 13 ft (4 m)
Read range off metal   Up to 16 ft (5 m)
Face material   White thermal transfer face stock
Background adhesive   High performance adhesive
Quantity per reel   500
Inner core diameter   3 in (76.2 mm)
Outer reel diameter   8 in (203 mm)

P/N: X50A0-GL100-M4

*This product utilizes an Impinj M4 series chip; each tag will have the exact same EPC number and a unique TID number. Xerafy will verify the Read/Write function of each chip memory before shipment.

Specialities
    EPC Class 1 Gen 2 (ISO 18000-6C)
    Passive UHF RFID transponders
    860-930 MHz (Global)
    128-bit user memory
    48-bit serialized TID
    496-EPC bits

Applications
    Product authentication
    IT asset and laptop tracking
    Global supply chain management
    Cylinder tracking

Foil-based packaging tracking

Xerafy is a specialist supplier of the world's toughest RFID tags to enable Industrial IoT applications for aerospace, oil & gas, manufacturing and Healthcare. The Xerafy headquarter is located in Singapore, Xerafy operates in the Americas, EMEA and Asia Pacific regions.

Xerafy’s product portfolio:

Xerafy MICRO - The MICRO series from Xerafy consists of rugged on metal high temperature RFID tags, providing consistent performance where reliability and durability are critical. Micro tags are engineered for paint shop and industrial processes and to withstand autoclave cleaning processes.

Xerafy PICO - Xerafy PICO tags are small sized on-metal RFID tags for industrial Equipment and tool tracking.

Xerafy XS - XS tags from Xerafy are the world’s smallest on-metal RFID tags for item-level tracking of tools, instruments and pipes

Xerafy ROSWELL - The Roswell series of tags from Xerafy are heavy duty on-metal tags with extreme durability for ATEX and Hazardous Environments.

Xerafy OUTDOOR - The Xerafy OUTDOOR series tags are long range RFID tags designed to offer the all-weather durability required for RFID container tracking and the management of cargo and RTI

Xerafy TRAK - The Xerafy TRAK series are RFID tags for cost-effective Identification and tracking of goods, assets and RTI’s in warehouses and factories.

Xerafy METAL SKIN - Xerafy METAL SKIN labels are flexible and printable RFID labels for supply chain and asset tracking applications. The labels are printable and encodable for superior performance on and off metal.

Xerafy XSKIN - The Xerafy XSKIN series offers off metal RFID inlays specifically engineered for specialized industrial systems.
