Zebra Silverline Micro II RFID Tag by Confidex is a versatile all-surface RFID label for securing IT and enterprise assets, valuable items, tools, and much more. The improved Silverline Micro II™ expands on the capabilities of the original Silverline Micro™, offering an increased read range on-metal 2.3x farther than its predecessor. The new Silverline Micro II™ has been completely redesigned with an increased foam thickness, a newer, more sensitive IC, and the addition of regional versions both FCC & ETSI. ETSI: 865 ‐ 869 MHz and FCC: 902 ‐ 928 MHz
Additionally, the Silverline Micro II™ offers increased read performance on off-metal surfaces such as plastics and liquids, with read ranges up to 1.5 m (5 ft) and 2 m (7 ft) respectively. The Silverline Micro II™ remains the ideal tag for applications where the suitable label size is limited, such as asset tracking of tools, metal parts, fixtures in manufacturing, or the tracking of wheelchairs, oxygen canisters, IV pumps, and more in healthcare.
Zebra Silverline Micro II RFID Tag by Confidex improves on its predecessor's performance with a new IC, higher read range on-metal up to 2.3x farther at 3.5 m (12 ft), all while maintaining its small footprint and industry-leading printing compliancy.
Features Washable.
IP 68 rated.
Versatile UHF RFID label.
Read ranges up to 3.5 (12 ft) on-metal, 1.5 m (5 ft) on plastics, and 2 m (7 ft) on liquids.
Printable, metal-mount label tag.
Can be applied on a curved surface.
Ideal applications include manufacturing, automotive, ICT and electronics, construction and mining, logistics and RTI operation, and healthcare.
ELECTRICAL SPECIFICATIONDevice type:Class 1 Generation 2 passive UHF RFID transponder
Air interface protocol: EPCGlobal Class1 Gen2 ISO 18000‐6C
Operational frequency:
ETSI: 865 ‐ 869 MHz
FCC: 902 ‐ 928 MHz
IC type: Impinj Monza R6‐P™
Memory configuration: EPC 96/128 bit; User 32/64 bit; TID 96 bit
EPC memory content: Unique random 96bit EPC in every label
Read range (2W ERP)*
ETSI and FCC
On metal up to 3,5 m / 12 ft
On plastic up to 1,5 m / 5 ft
On liquid up to 2 m / 7 ft
MECHANICAL SPECIFICATIONLabel surface: Printable white PET, Zebra 5095 resin ribbon recommended
Background adhesive: High performance acrylic adhesive optimized for metal and painted metal surfaces
Weight: 0,3 g

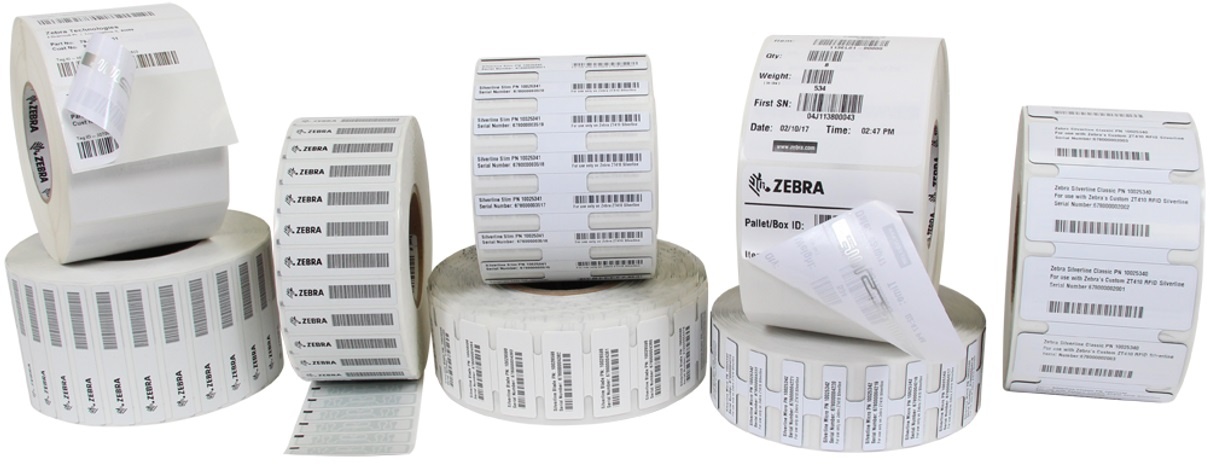

Delivery format: 600 pcs good labels on reel, bad ones marked with “XXX” printing.
Pitch on reel: 25,4 mm / 1”
Reel core inner diameter: 76 mm / 3”
Tag dimensions: 45 x 13 x 1,3 mm / 1.77 x 0.51 x 0.05
Applicable surface materials*
Optimized for metal but works on any surface
Attachment on curved surface
Label can be attached on a curved surface. Check installation instructions for more details.
When attaching the label ensure the following:
Select a smooth surface without uneven areas below tag
Avoid touching the background adhesive and IC location
When mounting the label with its adhesive, clean and dry the surface for obtaining the maximum bond strength. Typical cleaning solvents are heptane or acetone for oily surfaces or isopropyl alcohol for plastics. Do not use household cleaning solvents that contain oils. Carefully read and follow the manufacturer’s precautions and
directions for use when working with solvents.
Ideal application temperature is from +16°C to +38°C (+60°F to +100°F), bond strength can be improved with firm application pressure and moderate heating from +38°C to +54°C (+100°F to +130°F). Application at temperatures below 10°C (50°F) is not recommended.
Final bond strength is achieved in 72 hours. For optimal read range it is important to test different placement of label on the actual asset. It is recommended to leave metal at least to non‐folded end of the label as shown below.
Confidex Silverline Micro II On-Metal RFID label Tag, MR6‐P ETSI, Size: 45mm x 13mm x 1.3mm, Thermally Printable white PET, Class 1 Generation 2, EPCGlobal Class1 Gen2 ISO 18000‐6C, EPC 96/128 bit; User 32/64 bit; TID 96 bit, ETSI: 865‐869MHz, IC-Impinj Monza R6‐P, 600 pcs good labels per roll, Custom Zebra ZT410 RFID Silverline and ZT411 On-Metal printers.
10026763Confidex Silverline Micro II On-Metal RFID label Tag, MR6‐P FCC, Size: 45mm x 13mm x 1.3mm, Thermally Printable white PET, Class 1 Generation 2, EPCGlobal Class1 Gen2 ISO 18000‐6C, EPC 96/128 bit; User 32/64 bit; TID 96 bit, FCC: 902‐928MHz, IC-Impinj Monza R6‐P, 600 pcs good labels per roll, Custom Zebra ZT410 RFID Silverline and ZT411 On-Metal printers.
10026764
