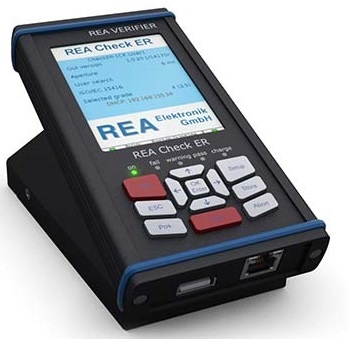

REA Check ER mobile portable 1D Barcode Verifier for quality control is small, powerful, portable Verifierfor printed barcodes operates on battery powered barcode verifier. Its manufactures in conformity with international standards. The REA Check ER is a combination of a very small device which includes the powerful and comfort features of the REA VERIFIER product line. The small size and solid state construction makes this device a perfecr tool for portable barcode verification.

The final result "Pass" or "Fail" is the central aprt of the verification report. The still quick available details allow a fast deeper analysis.

 REA Check ER Barcode Verification has a built-in battery for portable operation and is mobile with cable free in portable operation. Its large colour display with a built-in memory for up to 1000 reports and connects to PC via a USB interface to connect portable printer and offers a reliable ethernet communication for PC interface and DHCP automatic network configuration.

    Simple configuration for different demands like incoming goods control or print process control
    Saving of complete configuration as settings profile
    Setting profiles can be exported and imported. This allows to share settings and save them on a PC.
    Pass/fail setting for grade preset A/4, B/3, C/2 or D/1
    Automatic averaging of scans starting with 2 and up to 10 scans
    Auto discriminiation of all major bar code symbologies
    Automatic size and check digit control
    Light margin inspection in extended areas
    Ratio verification for two bar width symblogies like
    Code 39 and 2/5 interleaved
    Verification according GS1 General Specifications for retail codes
    Included GS1-128 Data structure verification for GS1-128 and GS1-Databar codes
    Colored LED‘s for quick pass/fail indication and operation status
    Multi language user interface and verification reports
    Simple software udate via network or USB Memory stick
    PC operation does not require driver installations

Verifies the following Barcodes:
    EAN-13
    UPC-A
    UPC-E with/without ADD-ON
    EAN-8
    2/5 Interleaved with/without check digit
    ITF-14
    Freight code
    Code 39 with/without check digit
    PZN-Code
    Code 32
    Code 128
    GS1-128 with/without content verification
    GS1 Databar (limited, stacked, expanded, expanded stacked, truncated, omnidirectional)

Technical Data:
    Measuring accuracy in conformance with ISO/IEC 15426-1
    Powered by 32bit ARM 9 CPU technology, built non volatile flash memory
    Operating System: Embedded Linux
    LED red light illumination, 660 nm, 45°
    Measuring width 75 mm (including light margins)
    Aperture: 5, 6, 8 and 10 mil ((this is 0,125, 0,15, 0,2 or 0,25 mm)
    Metric measuring accuracy: +/-5 % for average bar deviation, +/-10 % for extreme bar deviation; contrast accuracy: +/-8 %
    Interfaces: – RJ45 Ethernet socket for network or PC connection (standard TCP/IP) – USB 2.0 socket for portable printer connection and USB Memory stick connection
    Large color display and 12 keys for direct local operation and graphical report visualisation
    Power supply: Built-in LithiumIon battery pack and over „Power Over Ethernet“ power supply (100 to 240 Volt, 50/60 Hz, C13 socket for standard power cords (UK, US, EUR), two Ethernet CAT5 flexible patch cables included (3 m lenght). Ethernet cables up to 100 m lenght can be used.
    Size (L x B x H): 222 x 85 x 95 mm
    Weight: 660 g
    The Verifier is adjusted by the manufacturer. A new adjustement and calibration can be done by the user by the aid of the suppied calibration card. Test equipment monitoring is a monthly task done by the device user.
    TransWin32 can be used after enabling the option by an access code. This program allows a full remote confi guration of the verifi er. It shows, saves and print reports.
    System Requirement: PC with Windows 7 older later
