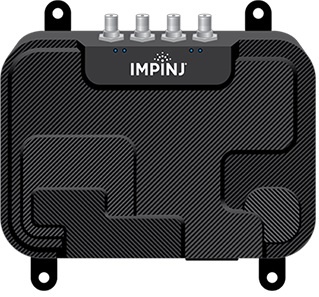

Impinj R700 RAIN UHF RFID 4-Port Reader is designed to support global enterprise RAIN deployments that need high performance and reliability offers super fast, accurate reading of small, global RAIN UHF RFID tags, the Impinj R700 reader advances the performance of use cases including threshold transitions, loss prevention, and inventory management for the USA/Canada FCC regions ONLY for the time being. Additional reader features facilitate large-scale system
Impinj R700 RAIN UHF RFID 4-Port Reader is designed to support global enterprise RAIN deployments that need high performance and reliability offers super fast, accurate reading of small, global RAIN UHF RFID tags, the Impinj R700 reader advances the performance of use cases including threshold transitions, loss prevention, and inventory management for the USA/Canada FCC regions ONLY for the time being. Additional reader features facilitate large-scale system deployments and address the demanding security needs of enterprise customers.
Impinj R700 RAIN UHF RFID 4-Port Reader delivers industry-leading sensitivity, fast network connectivity, and powerful edge processing as the Impinj R700 comes with increased reader performance and new developer tools to speed time-to-solution. With the Impinj IoT device interface, easily build and deploy a custom solution and connect applications to configure and control devices, and to consume RAIN data. With two models—the ETSI reader model and the global reader model—the Impinj R700 minimizes the complexity of deploying mutli-national enterprise RAIN solutions.
Impinj R700 RAIN UHF RFID Reader is designed to support global enterprise RAIN deployments that need high performance and reliability. IoT developers can easily build and deploy customized solutions with developerfriendly APIs, versatile, standardized connections, and support for up to 32 RFID antennas.
Impinj R700 RAIN UHF RFID Reader builds on the heritage of the Impinj Speedway reader family with an all-new internal and external design. With fast, accurate reading of small, global RAIN RFID tags, the Impinj R700 advances the performance of use cases including threshold transitions and inventory.
Enterprise-Grade RAIN RFID Reader for Next-Gen IoT Solutions best receive sensitivity, fastest network connectivity, and powerful edge processing. Impinj R700 reader builds on the heritage of the Impinj Speedway reader family with an all-new internal and external design—and increased capacity for on-reader applications. Support your global deployments with high performance, deployment simplicity, and reliability.
Impinj R700 UHF RFID reader provides industry-leading performance, enterprise reliability and security, and modern developer tools. IoT developers can easily build and deploy custom enterprise applications with a Linux OS, REST API, and native support for industry-standard data formats and protocols, such as MQTT.
Impinj R700 RAIN UHF RFID 4-Port Reader delivers increased support for on-reader applications – including 10x the processing power. Plus, when combined with tags based on Impinj M700 series tag chips, the Impinj R700 advances RAIN RFID performance at dock doors, conveyors, and store exits. The Impinj R700 reader builds on the heritage of the Impinj Speedway reader family, which has been proven reliable for 15 years in the field.
Read tags faster, from farther away, and speed time-to-solution
Why use the Impinj R700 UHF RFID 4-Port Reader - Suitable for global RAIN RFID deployments, Impinj R700 readers deliver the performance and ease of use needed by enterprise deployments.
Delivers industry-leading performance: leverage industry-leading sensitivity, powerful edge processing, and high-speed network connectivity to enable fast reading of small, global RAIN RFID tags and open up new use cases
Simplify RAIN deployments with IoT edge device: speed time-to-solution with increased on-reader memory, plus the Impinj IoT device interface that empowers IoT developers to easily connect applications to configure and control devices, and to consume RAIN data
Meet demands of next-generation RAIN solutions: future-proof investments in RAIN RFID and next-gen tag chips with performance, reliability, and deployment simplicity for enterprise-grade solutions
Just one Impinj R700 UHF RFID reader can connect up to 32 antennas when deployed with four Impinj R700 antenna hubs.
Main Features:
• Enterprise-grade reliability and security—Secure and field-upgradable; built on a heritage of best-in-class reliability
• Designed for enterprise-grade deployments—High-speed processing power and superior receive sensitivity for next-generation, enterprise RAIN applications
• Connects like other IoT devices—Easily connect to IoT applications with RESTful API and support for popular IoT data transfer technologies
• Build powerful, custom solutions—Embed powerful, custom on-reader applications and use versatile, standardized connections
• Fast Connection to IoT Applications—Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency
• Built to Withstand Tough Environments—Ruggedized cast aluminum enclosure withstands shock; ISO IP54 water-resistant case available.
• –92 dBm receive sensitivity enables reading smaller, global RAIN RFID tags at high speed for demanding use cases such as RAIN-based loss prevention.
• 1 GHz dual-core processor, 1 GB RAM, and Gigabit Ethernet allow sophisticated on-reader tag-processing algorithms that leverage low-latency connectivity to enterprise IoT applications.
• Support for up to 32 antennas with one-wire antenna connectivity facilitates large-scale system deployments. Integrated, standardized connectors provide rich support for external peripherals.
• Integrated, standardized connectors provide rich support for external peripherals·
• Secure, upgradeable Linux operating system, encrypted software image, and a secure software boot with chain-of-trust prevents unauthorized software execution and addresses the demanding security needs of enterprise customers.
Deliver Industry-Leading Performance - Best receive sensitivity and powerful edge processing enables fast, accurate reading of small, global RAIN RFID tags and opens up new use cases
Simplify IOT Solution Development - Easily build customized solutions with versatile, standardized connections, and intuitive APIs to connect with enterprise IoT business applications
Meet Demands of Next-Generation RAIN Solutions - Future-proof investments in RAIN solutions with performance, reliability, and deployment simplicity for enterprise-grade solutions
Connect everything with features that deliver industry-leading performance
Industry-leading sensitivity - Empowers reading tags farther and faster, and future-proofing of IoT solutions
Powerful edge processing - Enables intelligent, on-reader, RAIN tag-processing algorithms Secure, upgradable Linux OS
Delivers enterprise-grade security and reliability, and the flexibility to customize with on-reader applications
Simple IoT device interface - Easily connects IoT applications to configure and control devices, and to consume RAIN data, with native support for MQTT
Optimized design for inventory - Increases read rate and improves read zone control at lower transmit power
Rich peripheral and accessory support - Provides versatility with support for USB drives, Wi-Fi adapters, and up to 32 antennas via optional antenna hub
Features:
Enterprise-Grade Reliability and Security - Secure and field-upgradable; built on a heritage of best-in-class reliability
Designed for Enterprise-Grade Deployments - High-speed processing power and best receive sensitivity for next-generation, enterprise RAIN applications
Connects Like Other IoT Devices - Easily connect to IoT applications with RESTful API and support for popular IoT data transfer technologies
Build Powerful, Custom Solutions - Embed powerful, custom on-reader applications and use versatile, standardized connections
Fast Connection to IoT Applications - Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency
Built to Withstand Tough Environments - Ruggedized cast aluminum enclosure withstands shock; IP54 water resistant case available
Impinj R700 RAIN RFID reader delivers the best receive sensitivity, fastest network connectivity, and powerful edge processing—and now, after being tested and deployed by our Early Access Program partners, it’s available to all Impinj partners and end-customers worldwide.
The Impinj R700 comes with increased reader performance and faster read times, as well as new developer tools to speed the time-to-solution. With the Impinj IoT device interface, it is simpler to build and deploy a custom solution and connect applications to configure, control, and consume RAIN data. With two models—the ETSI reader model and the global reader model—the R700 minimizes complexity of deploying multi-national enterprise RAIN solutions.
Main Applications:
Inventory Management
Ensure supplies are always in stock, get accurate information about the availability and consumption of materials, and manage inventory with lower cost through efficient utilization and expiration management
Asset Tracking
Easily track returnable, reusable assets, like linens and uniforms, for reduced errors and increased efficiency
Enhanced Shopper Experience
Excite customers about the objects that are in their hands as they interact with information in your stores. Streamline services, such as self-checkout, to meet the expectations of modern shoppers
Impinj R700 RAIN UHF RFID FCC readers are currently in limited availability for the USA/Canada FCC regions ONLY for the time being, with additional regional support and general availability expected in the third quarter of 2020.
Part Number: IPJ-R700-341 is a Global Reader: Frequency 902–928 MHz
Part Number: IPJ-R700-241 isd a UK & European ETSI Reader: Frequency: 865–868 MHz, 915–921 MHz
Technical Specifications:
Physical Dimensions: With mounting brackets 8.4 in. long x 7.4 in. wide x 1.2 in. deep (21.5 cm x 18.7 cm x 3.0 cm)
Without brackets: : 8.4 in. width x 5.9 in. depth x 1.2 in. height inch (21.4 x 14.9 x 3.0 cm)
Power Supply: PoE (802.3af), PoE+ (802.3at)
Air Interface Protocol: EPCglobal UHF Gen2 v2 / ISO 18000-63 RFID
Antenna Ports: 4, Monostatic (RP-TNC)
Transmit Power: 33 dBm max (PoE+), 30 dBm max (PoE)
Receive Sensitivity: -92 dBm max
Supported Regions: USA and Canada
Processor: Dual-Core 1 GHz
Memory: 1 GB Flash, 1 GB RAM
Network Connectivity: 10/100/1000 BASE-T Ethernet
Device Connectivity: 3 USB Type-A device connections
General Purpose I/O: 3 out, 2 in
Impinj R700 and R720 RAIN UHF RFID 4-Port Reader Technical frequently asked questions (FAQ): This
support article lists the most frequently asked technical questions for
the Impinj R700 RAIN UHF RFID 4-Port reader and R720 RAIN RFID UHF
4-Port reader, known as the R700 series readers. For the Impinj IoT
device interface technical FAQ, please refer to the Impinj IoT Device
Interface FAQ.
How can I set the maximum power of 33 dBm with the Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series ?Web UI method:1. Make sure your PoE power source is compliant to 802.3at standard (PoE+).
2. On the Home tab of the Web UI under Power Source, select PoE+ from drop-down
3. Reboot reader
A screenshot of a power source Description automatically generated
Rshell method:1. Make sure your PoE power source is compliant to 802.3at standard (PoE+).
2. For Impinj R700 ETSI region only, select ETSI Upper band (EU2) as the Impinj R700 region.
3. Run the following RShell command on the Impinj R700 series reader
4. If it is not set to PoE+, issue the following Rshell command on the Impinj R700:
REST API method:
What is the minimum transmit power I can configure with the IImpinj R700 & R720 RAIN UHF RFID 4-Port Reader series?What options are available to power the IImpinj R700 & R720 RAIN UHF RFID 4-Port Reader series?The
Impinj R700 series readers are powered exclusively via power over
ethernet (PoE or PoE+). Many commercial switches offer this capability.
For use cases that require AC connectivity, Impinj sells a midspan
injector (P/N IPJ-A2010) that adds PoE+ capability to an existing
network connection. There are many commercial off-the-shelf options
available for other PoE injecting solutions.
What are the power requirement differences between the Impinj R700 and Impinj R720?The
Impinj R720 requires approximately 2 watts more power than the Impinj
R700 & R720 RAIN UHF RFID 4-Port Reader series. Due to this
difference, it is recommended to use PoE+ to power the R720. PoE power
is only recommended for the R720 if the device is running a transmit
power of 20 dBm or less and is not using any peripherals.
How can I set the maximum receive sensitivity of -93 dBm with the Impinj R700 series readers?Maximum
receive sensitivity varies depending on the reader mode you select. In
the Impinj ItemTest software, check the “Enable Max Sensitivity” option
to use the maximum receive sensitivity for the reader mode you are
using.
When using the Impinj IoT device interface, omitting the
“receiveSensitivityDbm” field from a preset configuration JSON will
cause the reader to report tags at the greatest sensitivity for any
given mode.
For more information on different RF Modes on the
Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series, please refer
to Impinj R700 Reader Modes (RF Modes) article.
For more
information describing how to optimize your deployment for receive
sensitivity, please refer to Why Receive Sensitivity Matters article.
Why did the published R700 receive sensitivity values change from -92 dBm to -93 dBm?Along
with the launch of the R720, Impinj changed their standard methodology
for measuring receive sensitivity for all fixed readers, including both
the R700 series and Speedway series products. The new methodology is
better aligned with RAIN Alliance recommendations and the ISO
18046-2:2020 industry standard. This change appears to have improved the
published values, however, Impinj’s fixed readers have not had any
changes made to them that functionally improved their receive
sensitivity.
For more information about this new methodology,
including step-by-step directions, please refer to the How to Perform
Reader Sensitivity Testing application note.
How can I know which antenna port an Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series is using to read tags?ItemTest
software’s Antenna column automatically displays which antenna port
that the Impinj R700 series reader is using to read tags.
If you
are using IoT Device Interface on 8.2.0 or newer firmware, under the Tag
Streaming tab, there is an Antenna column that displays the antenna
port number that last read a particular EPC.
A screenshot of a computer Description automatically generated
If
you are reading from output options in the Impinj IoT device interface
(Ex: HTTP Stream, MQTT, Kafka), the inventory preset can be configured
so that tagInventoryEvents will include the port name or number where
the tag was seen.
What type of Ethernet cable can I use for powering the Impinj R700 series reader via PoE/PoE+?Any IEEE 802.3 compliant Ethernet cable should work with the Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series.
However,
the maximum length of the Ethernet cable will vary depending on the
power source and the Tx Power you use. See tables below for each
available R700 series reader.
Impinj R700:Power Source Tx Max Cable Max
802.3at PoE+ 33 dBm 100 Meters
802.3af PoE 27 dBm 100 Meters
802.3af PoE 30 dBm 60 Meters
Impinj R720:Power Source Tx Max Cable Max
802.3at PoE+ 33 dBm 100 Meters
802.3af PoE 20 dBm 60 Meters
For
more information, please refer to the Impinj R700 & R720 series
Installation and Operations Guide found under R700 Series Documents and
Downloads.
Can I connect to the Impinj Impinj R700 & R720 RAIN UHF RFID 4-Port Readers from a Linux laptop?Yes.
If you run into connection issues, please refer to the following
Support Portal article: Troubleshooting Reader Connectivity Issues.
Can
I use the application that I developed for an Impinj Speedway reader
with an Impinj R700 & R720 RAIN UHF RFID 4-Port Reader ?In
general, yes. The LLRP interfaces available on Impinj Speedway readers
are also available on Impinj Impinj R700 & R720 series readers. You
may need to modify the code for the Impinj R700/R720 specific settings
and/or values. Please note that NOT all capabilities are present in the
Impinj R700 or R720, such as Doppler.
Applications that run directly on an Impinj Speedway reader will need to be recompiled for the Impinj Impinj R700 & R720
For more details, please refer to Speedway to R700: Migration Application Note
Can the Impinj R700 or R720 buffer tag reads and/or events if the network goes down?Yes. The buffer size is different depending on the interface you use:
- LLRP interface: up to 1000 tag reads
- IoT Device Interface: up to 300,000 events (for both the HTTP Streaming and MQTT output)
How can I get started developing on-reader applications with the Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series?Please refer to the Impinj R700 Embedded Toolkit Quick Start Guide.
You can also watch the Impinj online training videos (Impinj partner only):
http://learning.impinj.com/Is Speedway Connect available for the Impinj R700 and Impinj R720 RAIN UHF RFID 4-Port Reader series?No.
Impinj Speedway Connect only runs on Impinj Speedway readers, Impinj
xArray, Impinj xSpan, and Impinj xPortal. When configured to use the
Impinj IoT device interface, the Impinj R700 and R720 displays with a
native web UI and native IoT connectivity that offers similar
functionality to Impinj Speedway Connect. The UI is there for both
modes, I’d start the last sentence stating the new series has a built in
Web interface.
For more information, please refer to the
following Support Portal article: How to Configure the Impinj R700 &
R720 RAIN UHF RFID 4-Port Reader for Inventory Operation Using Presets.
This does not seem to be related to the last question.
Can I use GPI to trigger start and stop of inventorying?Yes. The
Impinj IoT device interface supports this through a preset
configuration using the "startTriggers" and "stopTriggers" JSON fields.
Please reference the Impinj IoT Device Interface documentation for more
information. Also using the built in Web UI.
The LLRP interface
may also be used to configure the reader to use a GPI as a start or stop
trigger: Setting up GPI Triggers with LLRP.
Which male terminal block can I use with the GPIO ports on the Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series?One example is, PHOENIX CONTACT Printed-circuit board connector, 1803646.
For
more information on the IImpinj R700 & R720 RAIN UHF RFID 4-Port
Reader series and GPIO, please refer to Connecting GPIO devices to
Impinj R700.
Can I add extra GPIO ports to the Impinj R700 series readers?Impinj
R700 has two general purpose inputs and three opto-isolated outputs.
Adding extra GPIO ports directly to the reader is not supported. You may
choose to use a networked GPIO device if the network latency is not a
concern.
Which Wi-Fi dongles does the Impinj R700 series readers support?Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series currently supports the following Wi-Fi chipset:
Ralink RT2870
Realtek 8821CU
For
more information, please refer to the following Support Portal article:
How to use an Impinj R700 Reader with a USB WiFi Adapter.
For which countries/regions are the Impinj R700 and Impinj R720 RAIN UHF RFID 4-Port Reader series certified?Please
refer to the following Support Portal article for all fixed reader and
Gateway products: Certified Regions and Geographies.
Are the Impinj R700 and Impinj R720 RoHS certified?Yes.
For more information, please refer to the following RoHS Compliance
document found under the R700 Series Documents and Downloads webpage.
For PoE, are there any requirement differences between Impinj Speedway series and Impinj R700?Yes,
power requirements vary depending on the use of power drawn from the
USB ports, the current draw from the GPIO port, and the length of the
Ethernet cable from the power source to the reader. These differences
for R700 are outlined in the table below:
Power Source TX Max Cable Max GPIO + USB Max
802.3at PoE+ 33 dBm 100 Meters 5V/500 mA
802.3af PoE 27 dBm 100 Meters 5V/500 mA
802.3af PoE 30 dBm 60 Meters None
These differences for R720 are outlined in the table below:
Power Source TX Max Cable Max GPIO + USB Max
802.3at PoE+ 33 dBm 100 Meters 5V/500 mA
802.3af PoE 20 dBm 60 Meters None
In
general, the more power that is being used, the more likely that PoE+
will be needed to supply enough power to keep the reader operating
without "browning out". For more information, please refer to the R700
Installation and Operations Guide found here.
Is there an antenna hub available for the Impinj R700 & R720 RAIN UHF RFID 4-Port Reader series?Yes,
the Impinj R700 antenna hub is available for R700 series readers. For
more information, please refer to the following document: Impinj R700
Antenna Hub Guide. This guide is available through the R700 Series
Documents and Downloads link.
The Impinj R700 antenna hub is compatible with the Impinj R720.
When should I choose the Impinj R720 over the Impinj R700 for a deployment?The
R720 and R700 are both designed to support global RAIN deployments that
need industry-leading performance, enterprise-grade reliability and
security, and support next-generation RAIN tags. The Impinj R720 has a
Qualcomm quad-core processor with a 1.4 GHz clock speed and therefore is
better suited for IoT solutions that require additional edge processing
power. The R720 is designed to fulfill the needs of partners and
customers that require increasingly complex on-reader applications and
algorithms required for their solutions.
What is the operating and storage temperatures for the Impinj R700 series readers?Operating temperature -4° F to 122° F (-20° C to 50° C)
Storage temperature -4° F to 158° F (-20° C to 70° C)
