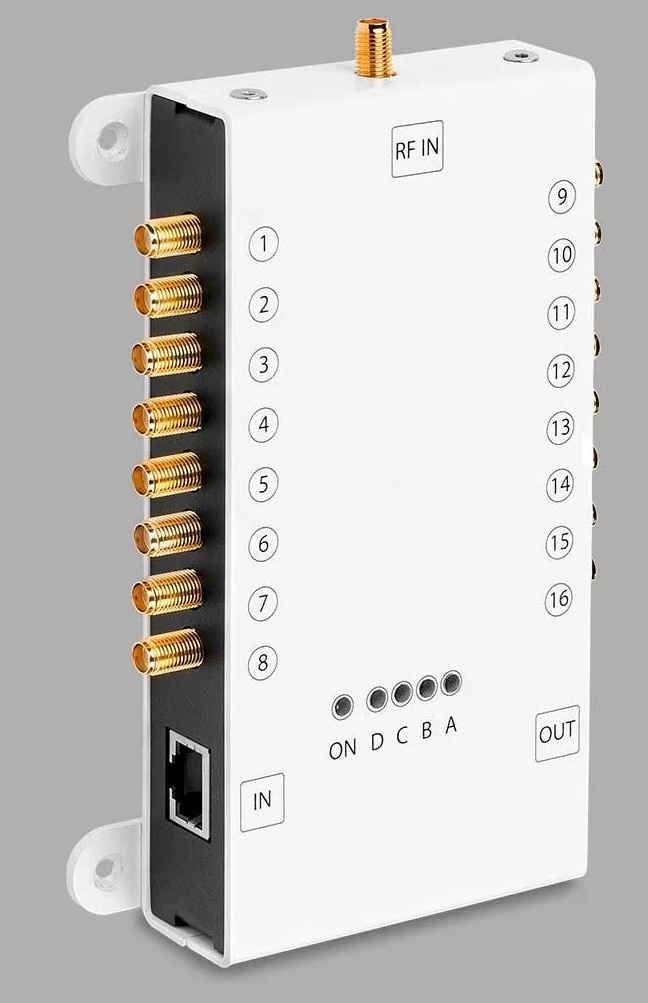

AdvanMux-16 is a high performance 16 port multiplexer that expands by a factor 16 the number of antennas that can be connected to each port of an RFID reader. AdvanMux-16 is easy to connect to practically every RFID reader in the market, including Impinj, Sirit, Motorola, ThingMagic Mercury6, and others.
AdvanMux-16 is connected to the I/O port of most reader models, and it is controlled by sending simple commands to the reader. This facilitates a lot the control of AdvanMux-16 and its synchronization with the reader. Any port of AdvanMux-16 can be selected at any time.
Features & Benefits of AdvanMux-16:
Reduces the cost of RFID applications with many antennas
Very fast and easy connection
Compatible with most reader models
Easy selection of ports by sending proper commands to the reader
Easy control of several multiplexers by interconnecting them with standard Ethernet cables
Low insertion loss
Connectivity:
The AdvanMux-16 connects directly to the following Keonn readers through a conventional Ethernet cable: AdvanReader-100 and AdvanReader- 150. For other reader models, a reader-specific cable adapter or the AdvanGPIO connection board can be ordered that connect the digital I/O port of the reader to one of the two RJ45 control ports of AdvanMux-16 multiplexer. The cable adapter can be easily extended to the required length using regular Ethernet 8-wire cables.
Two RJ45 control connectors are available at each AdvanMux-16 so that one multiplexer can control and power another multiplexer by a simple Ethernet 8-wire cable connection.
Keonn AdvanMux-16 UHF RFID Multiplexer is compatible with most RFID reader models on the market, including Keonn’s AdvanReaders, Impinj, Sirit, Motorola, ThingMagic Mercury6, and others.
Connection to the Keonn AdvanReader-50, the Keonn AdvanReader-100 and the Keonn AdvanReader-150: requires only a conventional Ethernet cable.
Connection to the Impinj R220, the Impinj R420, and the ThingMagic Mercury 6: requires a cable adapter (available upon request) and a conventional Ethernet cable (UTP cable).
Connection to other readers (compatibility with most readers): requires AdvanGPIOTM connection board (available upon request) and for some reader models PoE injector (available upon request).
Note: The Keonn AdvanMux-16 UHF RFID Multiplexer is not a replacement for the Impinj Antenna Hub. If you want to use this AdvanMux multiplexer with an Impinj reader, your software must send GPO commands to the Impinj reader in order to control the AdvanMux operation.
Specifications:
Operating frequency 860 MHz to 950 MHz
Number of ports 16
Insertion loss 1.2 dB (typ.)
Isolation 30 dB (typ.)
Return loss 20 dB (typ.), 16 dB (min.)
Max input power 33 dBm
Switching time < 10 µs
RF connectors 1 input and 16 output SMA 50 ohm receptacle connectors
Control and power connector 2 input/output RJ45 connectors
Power supply Pin 4 and/or Pin 5: Vcc = 5 V to 48 V
Current consumption < 11 mA
Digital inputs 0 V/5 V TTL or open collector
Note: Reader outputs must sink 2 mA (maximum)
Connection to AdvanReader-100 and AdvanReader-150 Requires only a conventional Ethernet cable
AdvanReader allows using two-level AdvanMux-16 multiplexing, so that up to 1024 antennas can be connected to the same reader
Connection to Impinj R220 and R420, and ThingMagic Mercury 6 Requires a cable adapter (available upon request) and a conventional Ethernet cable (UTP cable)
Connection to other readers Compatibility with most readers. Requirements: – AdvanGPIO connection board (available upon request) – For some reader models: PoE injector (available upon request)
Cable adapter Optional
Length: 25 centimetres (10 inches)
Control connection between AdvanMux units Through standard Ethernet 8-wire UTP cables
