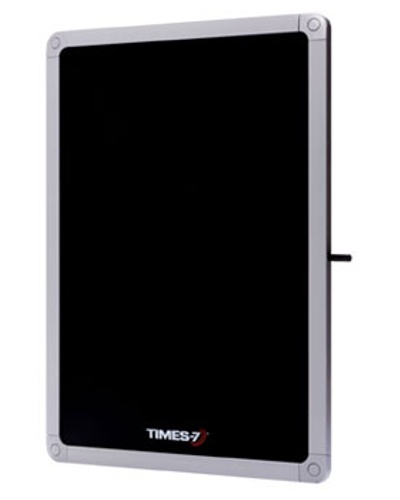

Times-7 A6032 Circular Plarized SlimLine Multi-purpose rugged RFID UHF antennas
Part of the SlimLine range of multi-purpose antennas, the A6032 is both unobtrusive and rugged. Together with its superior aesthetics, the A6032 is ideal for customer facing applications and sought after for RFID deployments from retail to industrial asset tracking. The A6032 can be flush wall mounted for asset tracking or used as a slim counter antenna for inventory management.
Operating Region: • USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards • EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standards
Physical / Environmental Specifications • Dimensions: 391mm x 275mm x 12mm • Polarization: Circular • Environmental Rating: IP65 • Connection: SMA female side fly lead (300 mm) • Gain: 7 dBi • Dimensions (LxWxD): 391mm x 275mm x 12mm (15.4 “ x 10.8 “ x 0.5“) • Weight: 1kg / 2.2 lbs. • Radome Material: Fire retardant ABS • Environmental Rating: IP65 • Operating / Storage Temperature: -20° to +55°C / -30° to +65°C -4° to +131°F / -22° to + 149°F • Mounting: Integrated mounting holes / no accessory are required. • Connector type / position: SMA fema le side fly lead (300mm / 1‘) • Vibration: IEC 68 - 2-6 (10 to 150 Hz, 0.5g, 1 hr. / 2 axes, Random Vibration) • Humidity: IEC 68-2-30 (+25° to +55°C / +77° to +131°F / 24 hr. cycle of at least 90% relative humidity) • Cold Test: IEC 68-2-1 (-40°C / -40°F / 24 hr.) • Heat Test: IEC 68-2-2 (+70°C / +158°F / 24 hr.) • Temperature Shock Test: IEC 68 -2-1 (10 cycles of 30mins. at -40°C / -40°F followed by 30mins. at +70°C / +158°F and back)
Pushing the boundaries of RFID technology worldwide Times-7 are leaders in RFID antenna design and manufacture. Our patented award winning UHF antennas meet the needs of virtually any industry application; providing customers with fast accurate tracking of products, assets & people; empowering organizations to transform processes & reduce costs.
Our SlimLine range of antennas are unique in the RFID industry; offering high levels of performance & durability in an aesthetically superior form. Proven in a diverse & growing range of markets, applications include: retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management.
