Times-7 A6590C SlimLine Ultra-low Profile Circularly Polarized Ground UHF RFID AntennaOperating Region:• USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards• EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standardsThe SlimLine A6590C is a hard wearing ultra-low profile circularly polarized ground antenna. At 915 mm by 305 mm (3 ft by 1 ft), it is a convenient doorway sized
Operating Region: • USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards • EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standards

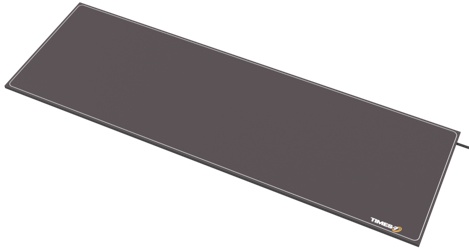

The SlimLine A6590C is a hard wearing ultra-low profile circularly polarized ground antenna. At 915 mm by 305 mm (3 ft by 1 ft), it is a convenient doorway sized footprint.
It is designed for applications tracking people movements through doors and entrance/exit ways or any products or assets where side antennas are unsuitable.
Part of Times-7’s exclusively unique range of ground antennas the A6590C is optimized for RFID deployments involving moving products, assets and people. From conference attendee & people tracking, retail presence aware / loyalty marketing& race timing, the A6590C is ideal for applications where traditional side antennas are unsuitable or not optimized for the application. At just 8 mm / 0.3 in. thick, the durable, high performance A6590C is uniquely capable of lying flat on the ground within a door way sized footprint, and can withstand payloads of over 200kg (440lbs.).
Ultra-low profile circularly polarised UHF ground antenna Just 8 mm / 0.3 in. thick
Dimensions 915 mm W: 305 mm H: 8 mm / 36 x 12 x 0.3 inches Frequency Range 902-928MHz (FCC); 865-867MHz (ETSI) Connector Type SMA Female side fly lead (300 mm / 1 ft.) or 2m / 6ft cable to RP-TNC Plug Antenna Gain 9 dBiC
