TSL 3166 Bluetoot Rugged RAIN RFID UHF Reader boasts innovations and performance improvements, in a more efficient reader with a longer battery life. Using the latest generation of Impinj silicon, read rates have been boosted up to 1200 tags per second. Multiple tag operations per tag are possible during an inventory scan – read multiple areas of each tag, or write to or even lock the tag.On reader de-duplication for 1 million transponders prevents overwhelming
TSL 3166 Bluetoot Rugged RAIN RFID UHF Reader boasts innovations and performance improvements, in a more efficient reader with a longer battery life. Using the latest generation of Impinj silicon, read rates have been boosted up to 1200 tags per second. Multiple tag operations per tag are possible during an inventory scan – read multiple areas of each tag, or write to or even lock the tag.
On reader de-duplication for 1 million transponders prevents overwhelming the connected host with information. Support has been added for passive sensor transponders (temperature, strain, humidity, acceleration) from HID and others – TSL can provide sample code demonstrating how to utilise these sensor transponders.
TSL3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader increased efficiency of the new internal hardware gives longer operating times times and more tags read in a single charge – up to a 34% increase in battery life compared to the previous generation 2166 Reader.
TSL 3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader is designed to read and write to EPC Class 1 Gen 2 and EPC Class 1 Gen 2V2 tags, the 3166 can also be configured with class leading, high performance 2D data scanning to bring unparalleled data collection capabilities to any host it is connected to.
TSL3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader has faster read rates – up to 1,200tags/second and faster ePop-Loq technology with improved Bluetooth® Module – BLE-enabled & faster Bluetooth® classic also with longer battery life. capacity to do multiple (batch) tag operations per single tag read and supports for sensor RFID tags
Main Features:Faster tag read rate Gathers RFID data at a blistering pace - up to 1200 tags per second
Longer Operating Times Up to 34% increase in battery life compared to the previous generation 2166 Reader
Multiple RF Profiles -
• high sensitivity
• maximum read rate
• dynamic switching between modes
• Bluetooth® improvements
• Bluetooth Classic speed boost (iOS ~2x speed improvement)
• BLE (Bluetooth Low Energy) enabled - no need for MFI (Apple) app registration
• Independent battery status and device information service
Hardware and OS Independence - Operates with Android, iOS, Linux, Mac and Windows. High Performance Barcode Scanning - An optional barcode engine can be specified to provide 1D and 2D barcode reader data capture
Single Point Charge Solution - TSL 3166 Docking Station allows charging of both the 3166 RAIN® RFID UHF Reader and a smartphone or handheld terminal attached via an ePop-Loq mount. The unique design can accommodate a wide range of devices from many handheld and smartphone manufacturers. The 3166 Reader boasts a faster ePop-Loq mode than previous TSL readers to accommodate higher tag throughput.

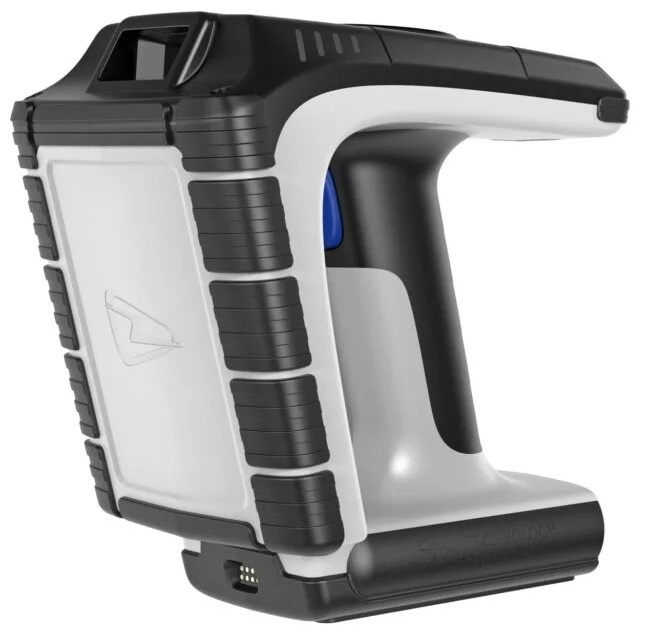

Tough Impact Resistant Housing - TSL 3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader from TSL provides high performance UHF RFID reading and writing in an incredibly tough and rugged form factor. The reader s highly resistant to water, dust and mechanical
trauma. A high capacity battery provides non-stop operation of the reader over the full working day.
Platform Independence - TSL 3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader uses existing Bluetooth® wireless technology enabled host devices including Enterprise Handhelds, Consumer Phones, Tablets and PC’s – the 3166 will bring high performance RFID and 2D scanning to all these devices running a wide range of Operating Systems.
In addition to Bluetooth Classic, Bluetooth Low-Energy provides a modern, secure link to even more devices. Extensive software support is available for a wide range of platforms including code samples, demonstration applications and source code.
Batch Mode - Transponder EPC readings can optionally be recorded on the embedded storage, meaning that the TSL 3166 Bluetooth Rugged RAIN Handheld UHF RFID Reader can be used independently of a host device. The 3166 can store up to 500 million* transponder EPCs - date and time stamped by the on-board Real Time Clock.
Backwards compatible - TSL 3166 Rugged Bluetooth ® RAIN® RFID UHF Reader is designed to work with existing apps built with TSL SDKs, but with improved performance. TSL’s lastest ASCII protocol provides the developer with a powerful set of commands that carry out multiple actions locally within the reader. This approach enables multiple tag operations to be executed using simple pre-configured commands which speeds up integration of the reader into applications.
