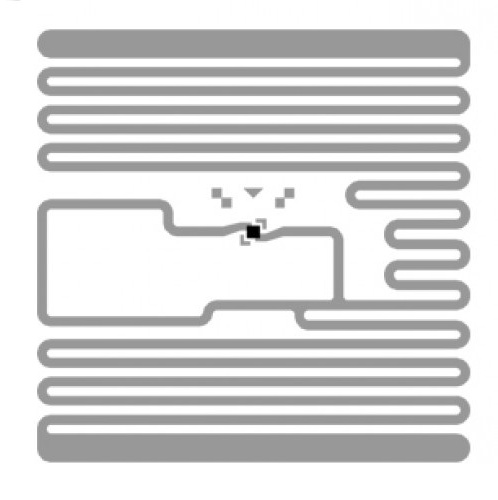

The Alien Technology ALN-9629 “Square” is a small form-factor, general-purpose RFID inlay, well-suited for item level tagging of apparel, pharmaceuticals, or high-value consumables where geometries are constrained.

Product Overview:
Powered by Aliens break-through Higgs™3 UHF RFID IC and innovative antenna design, the ALN-9629 delivers industry leading EPC Gen 2 performance and reliability in a compact form factor.

ALN-9629 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

With its Higgs-3 core, the “Square” delivers exceptional performance and is especially well suited for item level applications where geometries are constrained.

The “Square” inlay comprises a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.

Applications
    - Apparel hang tags
    - Pharmaceuticals
    - Item level tagging where space is a premium

Features:
Compact size yet exceptional performance
Designed to meet EPCglobal Gen2 (V1.2.0) and ISO/IEC 18000-6C
Worldwide RFID UHF operation (840-960MHz)
Higgs™-3 IC with 800-bits of Nonvolatile Memory
– 32-bit TID
– 64-bit Unique TID
– 96-bit EPC Memory, extensible to 480-bits
– 512-bit User Memory
– 32-bit Access password
– 32-bit Kill password
Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication)
User Memory can be Block Perma-Locked
User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
Supports all Mandatory and Optional Gen 2 commands including item level commands
Custom commands for high speed programming
Available in high-yield, high-capacity dry/wet inlay rolls for high volume converting processes
