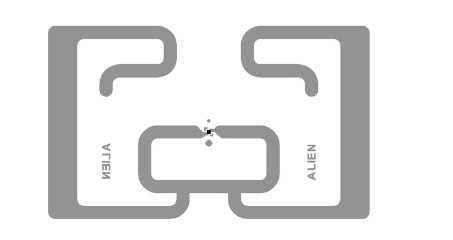

The Alien Technology® ALN-9726 “Spider-360” is an (in-plane) omni-directional 30x50mm tag for use in general, retail and airline baggage applications. Unlike conventional single dipole tags this inlay does not have a null in the same plane as the tag. It is therefore useful to attach to products and merchandise where end-on tag reads are likely.Product Overview: Powered by Alien®’s break-through Higgs™4 UHF RFID IC and innovative “Spider™360” antenna
The Alien Technology® ALN-9726 “Spider-360” is an (in-plane) omni-directional 30x50mm tag for use in general, retail and airline baggage applications. Unlike conventional single dipole tags this inlay does not have a null in the same plane as the tag. It is therefore useful to attach to products and merchandise where end-on tag reads are likely.
Product Overview: Powered by Alien®’s break-through Higgs™4 UHF RFID IC and innovative “Spider™360” antenna design, the ALN- 9726 delivers industry leading EPC Gen 2 performance and reliability for retail and apparel applications where items are tightly packed on shelves and may be read “end-on” (e.g. by a handheld reader). The orientation insensitive behavior of this tag also lends itself to baggage tracking, shipping and document tracking.
With its Higgs-4 core, the “Spider-360” delivers next generation read and write performance, yet is completely optimized for the highest volume enterprise, retail, and general purpose applications.
An optimized memory footprint includes a 32-bit TID, a 64- bit Unique TID for authentication and next generation serialization applications, a 128-bit EPC memory bank, 128-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.
ALN-9726 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.
Features: Designed to meet EPC global Gen2 (V1.2.0) and ISO/ IEC 18000-6C Worldwide operation in the RFID UHF bands (840- 960 MHz) 448-Bits of NVRAM Memory • 128-EPC Bits • 128 User Bits • 64 Bit Unique TID • 32 Bit Access and 32 bit Kill Passwords
Pre-Programmed with a unique, unalterable 64-bit serial number User Memory can be Block Perma-Locked as well as read password protected in 32 Bit Blocks Class leading read and write performance BlastWrite™ and QuickWrite™ mass-encoding Dynamic Authentication™ - anti-cloning/anti-coun¬terfeit technology Exceptional operating range, up to 11m with ap¬propriate antenna. Available in high-yield, high capacity dry/wet inlay rolls
