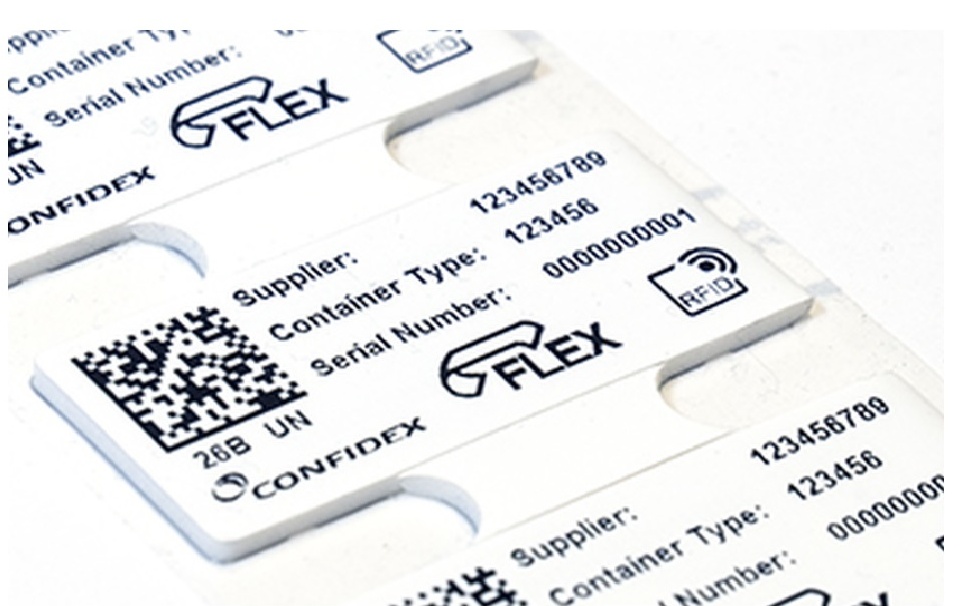

Confidex Steelwave Flex UHF RFID Tag Labels connect the high-value components automatically to electronic data interface (EDI). This makes component tracking error-free and gives real-time data about the inventories. By that way Tier 1 part suppliers, OEM’s, and logistics providers can further optimize the inventory levels and gain resource savings. These labels UHF tags are designed to match with wide variety of components – whether the component is plastic,
Confidex Steelwave Flex UHF RFID Tag Labels connect the high-value components automatically to electronic data interface (EDI). This makes component tracking error-free and gives real-time data about the inventories. By that way Tier 1 part suppliers, OEM’s, and logistics providers can further optimize the inventory levels and gain resource savings. These labels UHF tags are designed to match with wide variety of components – whether the component is plastic, metal, flat, or curved. Their flexible structure and strong background adhesive provides a durable identification method for components ranging from car batteries to plastic parts.
Additionally, Confidex Steelwave Flex™ are personalized with customers’ data. This can mean for example VDA, Verband der Automobilindustrie, standard compatible encoding of the IC and visual marking of the label’s surface. All this ensure interoperability among the automotive supply chain’s different players so that the components can be automatically connected to the electronic data interface (EDI).
Equipped with flexible attachment on curved assets, the Confidex Steelwave Flex™ is a global and compact UHF RFID label optimized for metallic surfaces making it an ideal solution for component logistics applications.
Flexible on-metal label with extremely strong adhesive. Due to unique more flexible structure compared to other on-metal labels in the market Steelwave Flex is optimal solution to tag small components and assets. Flex is optimized for metal surfaces but do work also on plastics and liquid containers. Steelwave Flex comes with VDA encoding scheme compliant IC by default.
Confidex Steelwave Flex™ is designed to work with the Custom Zebra ZT410 RFID Silverline and ZT411 On-Metal printers. For more information please contact Confidex.
Features Reliable identification of high-value assets.
Personalized with VDA-compatible data, ready for EDI.
Flexible, IP 68 rated UHF RFID label optimized for metallic surfaces.
Label can be attached on a curved surface with smallest diameter of 50mm.
Excellent adhesion to all surfaces including low surface energy plastics and painted metal.
Confidex Steelwave Flex Specifications: ELECTRICAL:Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C),
Operating Frequency: Global (865–928 MHz),
IC Type: Impinj Monza 4E™,
Memory: EPC 496 bit, User 128 bit, TID 96 bit
EPC Memory Content: Not guaranteed unique
Max Read Distance - On Flat Metal: Up to 5 m (16 ft)
Max Read Distance - On Ø70mm Radius Metal: Up to 4 m (13 ft)
Max Read Distance - On Ø50mm Radius Metal: Up to 5 m (16 ft)
Max Read Distance - On Plastic (FCC): Up to 5 m (16 ft)
Max Read Distance - On Plastic (ETSI): Up to 1 m (3ft)
Applicable Surface Materials: All surface, optimized for metal
MECHANICAL:Tag Form Factor: Adhesive Label
Tag Materials: Specially coated PP (white)
Recommend Ribbon: Full Resin
Attachment Method: High tack adhesive
Size/Dimensions: 55mm x 25mm x 2.2 mm (2.17 x 0.98 x 0.087 in)
Weight: 1 g
ENVIRONMENT:Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Confidex Steelwave Flex M4E Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C), Operating Frequency: Global (865–928 MHz), IC Type: Impinj Monza 4E™, Memory: EPC 496 bit, User 128 bit, TID 96 bit, Adhesive Label, Tag Materials Specially coated PP (white), High tack adhesive, Size: 55mm x 25mm x 2.2 mm, IP68, 250 Tag Labels per Roll.
Confidex Product number: 3001568
