SMARTRAC’s MIDAS FLAGTAG UHF RFID Inlays and Tags Labels
SMARTRAC’s MIDAS FLAGTAG is designed for item-level tagging on diverse surfaces, especially metallic surfaces like foil packaging, and offers excellent performance in less demanding physical environments. It can be applied to metallic surfaces of retail, pharma or industrial items.MIDAS FLAGTAG is a cost-efficient RAIN RFID (UHF) on-metal solution for product or part authentication, supply chain & asset management, when compared to other foam-based inlays and
SMARTRAC’s MIDAS FLAGTAG is designed for item-level tagging on diverse surfaces, especially metallic surfaces like foil packaging, and offers excellent performance in less demanding physical environments. It can be applied to metallic surfaces of retail, pharma or industrial items.
MIDAS FLAGTAG is a cost-efficient RAIN RFID (UHF) on-metal solution for product or part authentication, supply chain & asset management, when compared to other foam-based inlays and hard tags designed for use in tougher environmental conditions. The tag can also be used on plastic and cardboard surfaces and works as a standard tag.

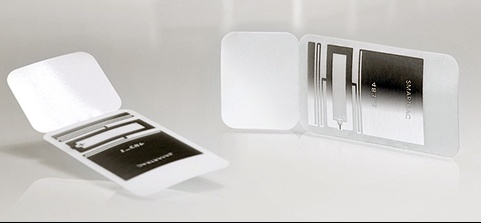

MIDAS FLAGTAG has an innovative small form factor with a total size of 60 x 21 mm when used as a standard flat paper tag. Its special feature is that a flag can be created at the end of tag with a final paper tag size of 43 x 21 mm after folding, and with an exposed flag size of 17 x 21 mm. The folded part of the tag sticks out of the metal like a flag, and the attached antenna part uses the metal surface as part of the antenna structure to increase the performance of the tag. Read distances of over 10 meters can be achieved, depending on the geometry and size of the metal object. The tags are compatible with RFID printers for easy printing and encoding.
SMARTRAC’s MIDAS FLAGTAG is equipped with the Impinj Monza R6 IC that features an Autotune function, which helps MIDAS FLAGTAG to work at peak efficiency, even in rapidly changing environments. Furthermore, the Monza R6 chip offers unique TID, enabling pre-serialized EPC, and is 100% performance tested.
Overview
Operating Frequency
860-960 MHz
Integrated Circuit (IC)
Impinj Monza R6
Antenna Size
31.4 x 18 mm (1.2 x 0.7 in)
Die-cut Size
60 x 21 mm (2.4 x 0.8 in)
Memory
96 bit EPC
Operating Temperature
-40 °C to +85 °C
International Standards •EPC Class 1 Gen 2, •ISO 18 000-6C
Fields of Applications •Retail e.g. for foil packaging, cosmetics, beverages •Industry e.g. for metallic assets, steel •Healthcare e.g. for surgical consumables
