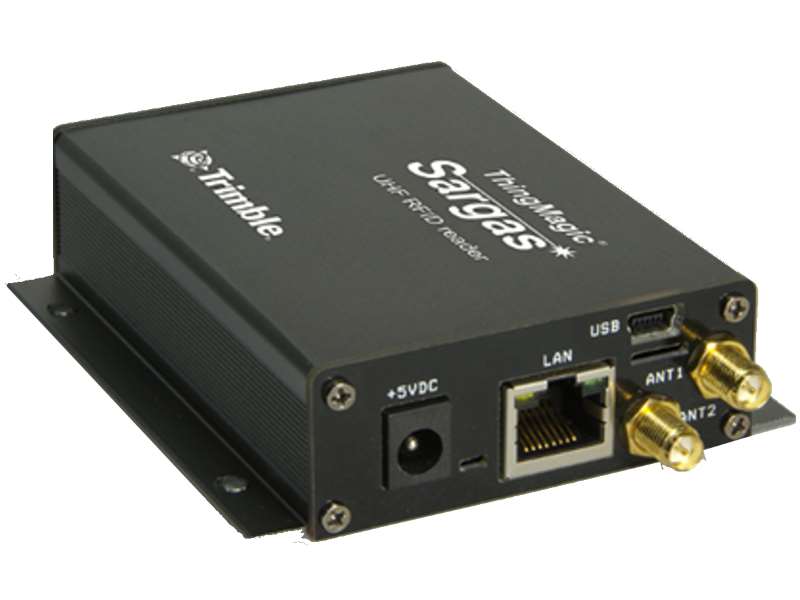

ThingMagic Sargas UHF RAIN RFID reader is a high-performance, 2-antenna-port with RP-SMA and HDMI connections , networked, UHF reader in a low profile enclosure.Built around the ThingMagic Micro reader module, the device reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. Reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. Suitable for many
ThingMagic Sargas UHF RAIN RFID reader is a high-performance, 2-antenna-port with RP-SMA and HDMI connections , networked, UHF reader in a low profile enclosure.Built around the ThingMagic Micro reader module, the device reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. Reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. Suitable for many regions including: USA-FCC, EU-ETSI, KCC, TRAI, ACMA, SRRC regulatory specifications.
With an onboard processor, memory and removable flash storage, the reader has features designed for enterprise applications, and easy system integration.
The Sargas reader is preconfigured for most regions in the world including the Americas (FCC / IC rules) Europe (ETSI rules) India (TRAI) Korea (KCC) Australia (ACMA) China (SRRC-MII) and Japan (MIC).
The reader also has a customizable option to accommodate other areas and research applications.
Features of the Sargas RFID Reader include:
• Support for EPCglobal Gen 2 (ISO 18000-6C) with Anti-Collision and DRM
• 2 antenna ports with RP-SMA connections
• HDMI port for easy display integration
• Ethernet, micro SD and 2-USB (host & client) ports
• 1 GHz ARM 8 Cortex processor, 512 MByte memory, 4 GBytes Flash, custom applications may be loaded
• ThingMagic Reader Assistant software and applications development tools
• Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations
• Certifiable for operation in countries adopting FCC, ETSI, KCC, TRAI, ACMA, SRRC regulatory specifications (Open (Customizable) 860-960 MHz)
• Tag Read Rate up to 750 tags/second with high ? settings
• Tag Read Distance > 9 m (30 feet) with appropriate antenna
• Operating temperature range -20 to +60º C with appropriate duty cycle
• Dimensions: 87 mm L x 80 mm W x 23.8 mm H (x3.4 in L x x3.15 in W x x0.94 in H)
Applications:
In-Vehicle, including Emergency Medical Services, Mobile Asset Management, Construction
Warehouse & Supply Chain
Outdoor Sheltered Applications
Pre-configured UHF RFID operating frequencies for these regions:
• FCC/IC 902-928 MHz, 917.4-927 MHz, 917.5-922.5 MHz (Americas)
• ETSI 865.6-867.6 MHz,869.85 MHz (EU)
• TRAI 865-867 MHz (India)
• KCC 917-920.8 MHz (Korea)
• ACMA 920-926 MHz
• SRRC-MII 920-925 MHz (P.R. China)
• MIC 916.7-920.9 MHZ (Japan)
• Open (Customizable) 865-869 MHZ,902-928 MHz
ThingMagic Sargas reader is a high-performance, 2-antenna-port, UHF reader in a low profile enclosure. Built around the ThingMagic Micro reader module, the device reads more than 750 tags per second at distances over 9 meters (30 feet) when configured with appropriate antennas. With an onboard processor, memory and removable flash storage, the reader has features designed for enterprise. ThingMagic Sargas reader makes system integration easier in 3 ways: hardware features, Sargas reader architecture, and supporting software tools and API. Careful use of these capabilities can reduce hardware count and software development time in a project. ThingMagic's Sargas Reader is an ideal solution for applications including but not limited to: access control, in-vehicle asset tracking, point of sale, document tracking, medical patient ID, item level scan in manufacturing (WIP), kiosks and smart displays, event management, product authentication and brand protection, asset tracking in warehouse, and took check in/out.
Powerful Processor - Sargas is outfitted with a powerful ARM Cortex processor running Linux and generous amounts of DDR and FLASH memory, allowing complex on-reader programs to be loaded and written with the aid of ThingMagic’s MercuryAPI.
RAINstream Compatible - All settings, including those for RAINstream, can be configured via a web interface sourced by the reader. This interface also permits the administrator to view status, upgrade firmware, run diagnostic tests, and test reading ability.
“Tagnostic” - ThingMagic Sargas supports the entire suite of RAIN UHF RFID tag functionality, including Gen2V2 security. It also supports custom features from a wide variety of tag vendors, enhancing functionality for specialized applications. Optional, non-RAIN tag protocols are also available, including ISO 18000-6B, and read-only support for IP-X and AEI ATA.
Common Language - Mercury API, ThingMagic’s universal programming interface, permits easy software portability across the entire ThingMagic product line – between finished readers and embdedded modules.
Multiple Data interfaces - Multipurpose client and host USB Ports, an SD card slot, and high voltage, opto-isolated general purpose I/O ports allow Sargas to support a wide variety of applications.
Features
Powerful, yet very compact 2-port UHF RFID readers.
2 RF ports - 0 to +30 dBm.
Compact form factor - 3.4 x 3.1 x 0.94 in.
EPCglobal LLRP v1.1.
Significant on board processing power eliminates the need for a supporting PC.
Reads up to 750 tags per second.
World-wide frequency coverage.
Networking, GPIO, USB, micro SD ports.
Multi-protocol extensions.
Mercury API, Universal Reader Assistant software support.
Independent read and write RF controls.
Powered by AC or DC.
The Micro-SD card slot can be used for external data storage.
The host USB port can support a keyboard and mouse.
Included is the ThingMagic Sargas 2-Port UHF RFID Reader Unit + ThingMagic Sargas Power Adapter
ELECTRICAL:
Air Interface Protocol - Standard: EPC Gen 2V2 ISO 18000-63
Air Interface Protocol - Additional: ISO18000-6B, IP-X 64, 128, AEI ATA & RAINstream are available through additional license
Reader Protocol: EPC Global LLRP V1.1
Operating Frequency: UHF (865-869 MHz) and (902-928 MHz)
Additional Operating Frequency: TRAI (865-867 MHz), MIC (916.8-920.8 MHz)
Transmit Power: 0 dBm to +30 dBm
Max Receive Sensitivity: Not Published
Max Read Distance: Up to 9 m (30 ft) - with appropriate antenna
Max Read Rate: Up to 750 tags per sec (settings dependent)
Data Interface: RJ45, USB Type A, USB Type B, Micro-SD
GPIO: 4 opto-isolated GPIO lines (2 in / 2 out)
Power Source: 4.5 to 5.5 V dc, 15 W max
Antenna Ports: 2 RF ports: RP-SMA female (connects to RP-SMA male)
Size/Dimensions: 87 x 80 x 23.8 mm (3.4 x 3.1 x 0.94 in)
Weight: 0.27 kg (0.60 lbs)
ENVIRONMENT:
IP Rating:b Not Published
Operating Temperature: -40 to +60ºC (-40 to +140ºF)
APPLICATION INTERFACE:
Host API: Mercury API SDK
Demo Software: Universal Reader Assistant
ThingMagic Sargas 2-Port UHF RFID Reader EPC Gen 2V2 ISO 18000-63, Operating Frequency: UHF (865-869 MHz) and (902-928 MHz) Operating Frequency: TRAI (865-867 MHz), MIC (916.8-920.8 MHz), RJ45, USB Type A, USB Type B, Micro-SD, Antenna Ports: 2 RF ports: RP-SMA female (connects to RP-SMA male)
S6-NA
